(71.460.AF[03]) - VAR - 461548 - ARM, LUBRICATION LINE (L=2.53M)

Запчасти Case CX500D RTC (71.460.AF[03]) - VAR - 461548 - ARM, LUBRICATION LINE (L=2.53M) (71) - LUBRICATION SYSTEM

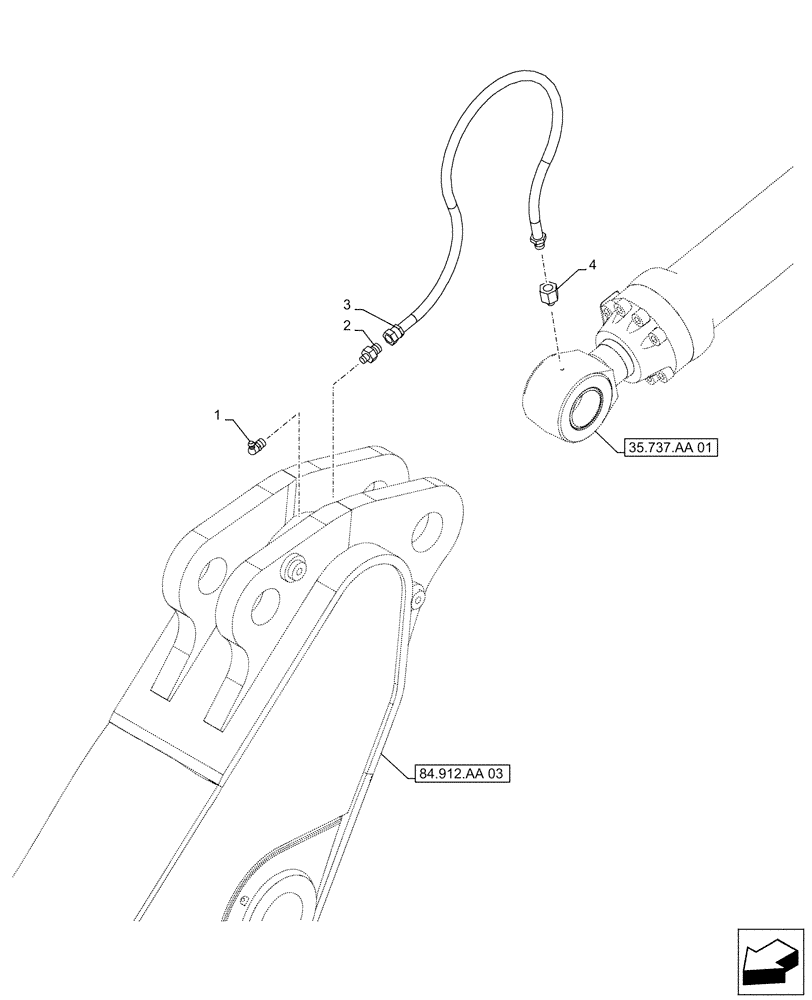

Схема запчастей Case CX500D RTC - (71.460.AF[03]) - VAR - 461548 - ARM, LUBRICATION LINE (L=2.53M) (71) - LUBRICATION SYSTEM
35.737.aa 01
2
1
4
3
84.912.aa 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

2

KRJ4050

ADAPTER

1шт.

3

MPJ5195

HOSE ASSY.

1шт.

4

153775A1

FITTING

1шт.

Выбрано товаров: 4
