Запчасти Case CX500D RTC (39.140.AM[10]) - VAR - 481263 - CYLINDER, LINES, HYDRAULIC, COUNTERWEIGHT (39) - FRAMES AND BALLASTING

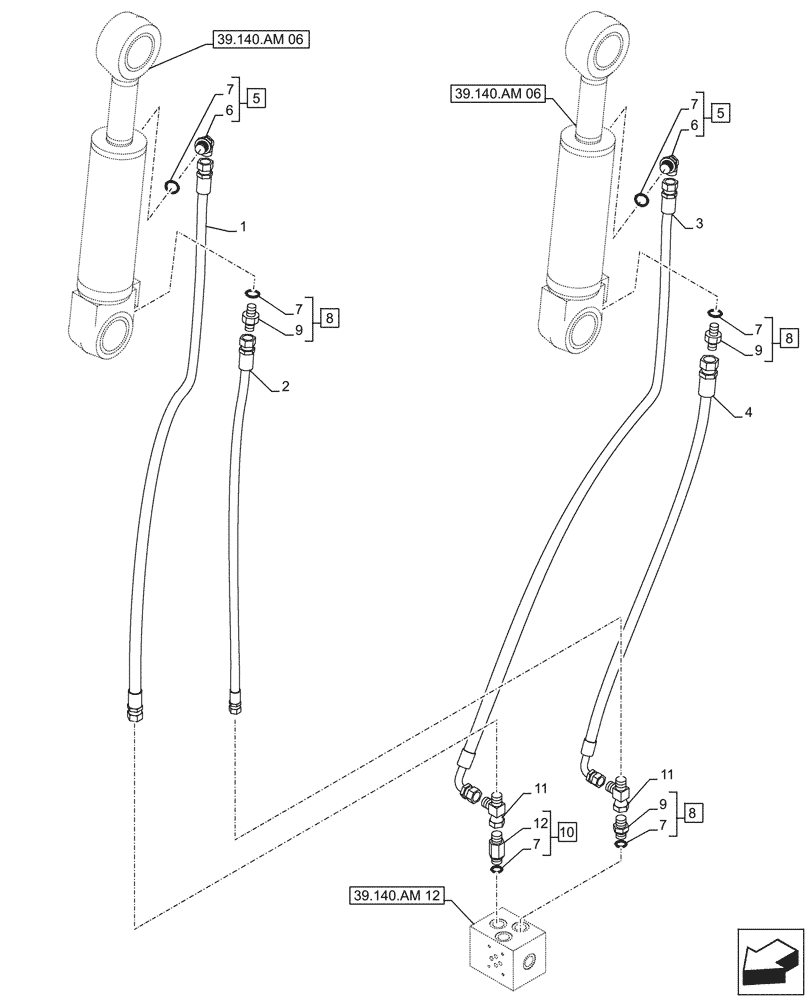

![Схема запчастей Case CX500D RTC - (39.140.AM[10]) - VAR - 481263 - CYLINDER, LINES, HYDRAULIC, COUNTERWEIGHT (39) - FRAMES AND BALLASTING](https://partsell.ru/storage/images/casece/5490905.png)
39.140.am 06
6
9
7
8
1
8
8
5
10
7
7
1
1
7
1
4
6
1
3
7
9
7
5
12
9
39.140.am 12
2
39.140.am 06
№
Артикул
Название
Примечание
Количество
1
KTJ14880
HYDRAULIC HOSE
1шт.
2
KTJ14890
HYDRAULIC HOSE
1шт.
3
KTJ17020
HYDRAULIC HOSE
1шт.
4
KTJ17010
HYDRAULIC HOSE
1шт.
5
KHJ28590
ELBOW
ASSY, Incl 6, 7 (Qty 1)
2шт.
6
NSS
NOT SOLD SEPARAT
90° Fitting, Incl in 5
2шт.
7
150031A1
O-RING,10mm ID x 24mm OD
2шт.
8
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ASSY, Incl 8, 7 (Qty 1)
3шт.
9
NSS
NOT SOLD SEPARAT
90° Fitting, Incl in 8
3шт.
10
159226A1
ADAPTER
ASSY, Incl 10, 7 (Qty 1)
1шт.
11
KHJ2234
TEE
2шт.
12
NSS
NOT SOLD SEPARAT
Fitting, Incl in 10
1шт.
Выбрано товаров: 12
