Запчасти Case CX500D RTC (39.140.AM[05]) - VAR - 481263 - ARM, BUSHING, SUPPORT, HYDRAULIC, COUNTERWEIGHT (39) - FRAMES AND BALLASTING

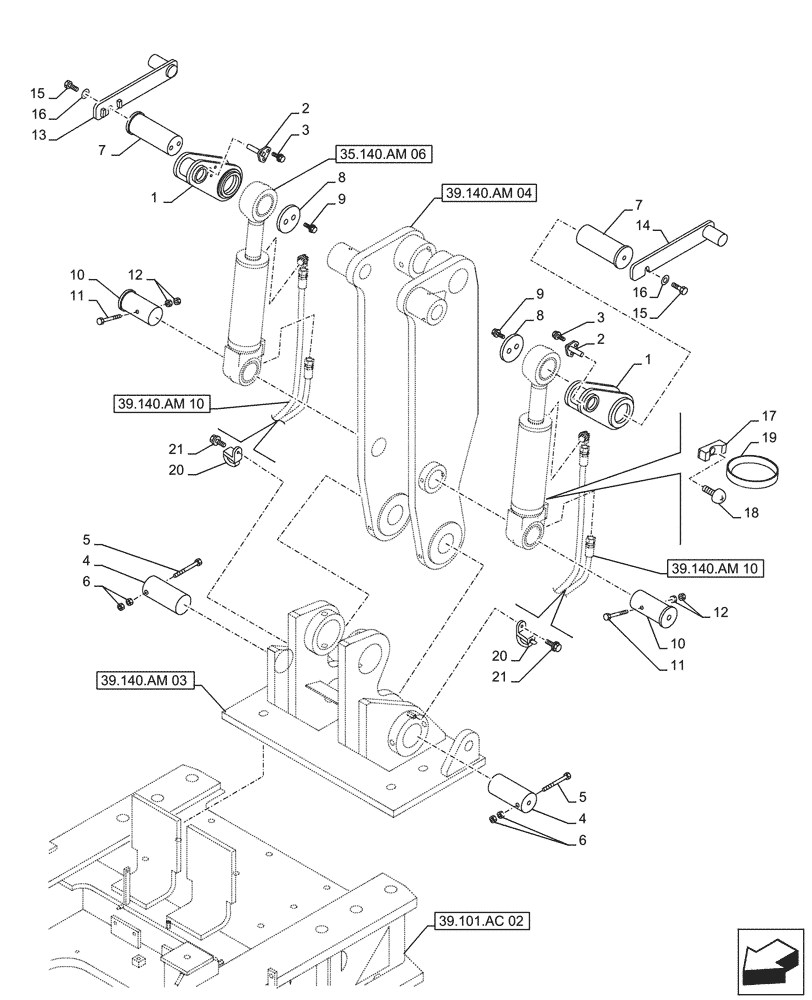

![Схема запчастей Case CX500D RTC - (39.140.AM[05]) - VAR - 481263 - ARM, BUSHING, SUPPORT, HYDRAULIC, COUNTERWEIGHT (39) - FRAMES AND BALLASTING](https://partsell.ru/storage/images/casece/5491611.png)
39.101.ac 02
19
20
10
5
11
6
15
2
8
15
14
4
13
3
7
10
3
8
21
6
16
7
4
16
9
5
18
2
11
20
17
21
1
12
39.140.am 10
39.140.am 10
1
9
12
39.140.am 03
39.140.am 04
35.140.am 06
№
Артикул
Название
Примечание
Количество
1
KTB0951
PIN
2шт.
2
514-1034
BOLT,Hex, M16 x 1.5 x 180mm, Cl 10.9
M16 x 180mm
2шт.
3
829-13416
NUT,M16 x 1.5, Cl 10
4шт.
4
KTB0945
LINK
2шт.
5
KUB0159
PLATE
2шт.
6
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
M12 x 25mm
4шт.
7
KTB0946
HEADED PIN
2шт.
8
KTB0959
PLATE
2шт.
9
166373A1
BOLT,Sems, M16 x 40mm
M16 x 40mm
4шт.
10
KTB0947
HEADED PIN
2шт.
11
132R012Y140R
BOLT,M12 x 140mm
M12 x 140mm
2шт.
12
172R012VR
NUT
4шт.
13
KTB13830
PLATE
1шт.
14
KTB13840
PLATE
1шт.
16
150814A1
WASHER,17mm ID x 32mm OD x 4.5mm Thk
M16
2шт.
17
150860A1
COLLAR
2шт.
18
145N006S008R
SCREW,Pan Hd, M6 x 8mm, Cl 10.9
M6 x 8mm
2шт.
19
150496A1
MOUNTING CLIP
250mm
2шт.
20
KHR2581
CLAMP
M8
2шт.
21
KHJ1215
BOLT,Spcl
M8 x 25mm
2шт.
Выбрано товаров: 21
