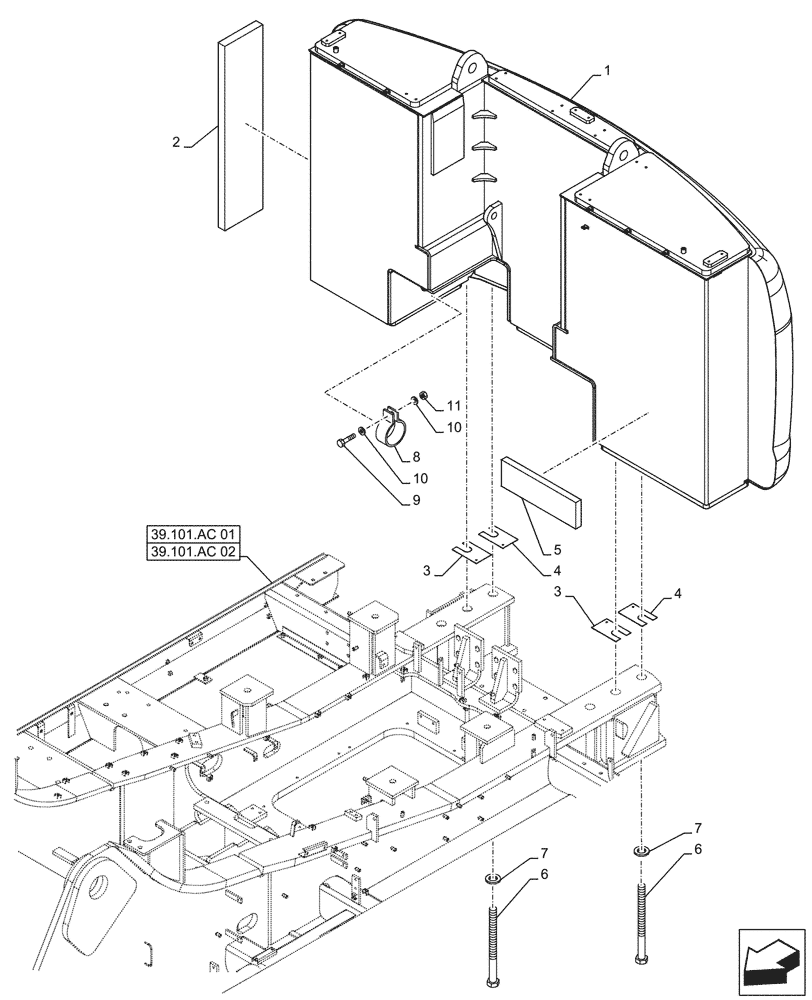

Запчасти Case CX500D RTC (39.140.AM[02]) - VAR - 481263 - OPTION, COUNTERWEIGHT (39) - FRAMES AND BALLASTING

1

KTB15240Y2

COUNTERWEIGHT

1шт.

2

KSN14600

NOISE PROTECTION

1шт.

3

KSB0865

SPACER

T 1.2mm

2шт.

4

KSB0864

SPACER

T 0.8mm

2шт.

5

KSB0885

NOISE PROTECTION

1шт.

6

KTB13430

BOLT

M33 x 410mm

6шт.

7

KSB0863

WASHER

M33

6шт.

8

KTB1047

SPACER

2шт.

9

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

162R008VR

NUT

2шт.
