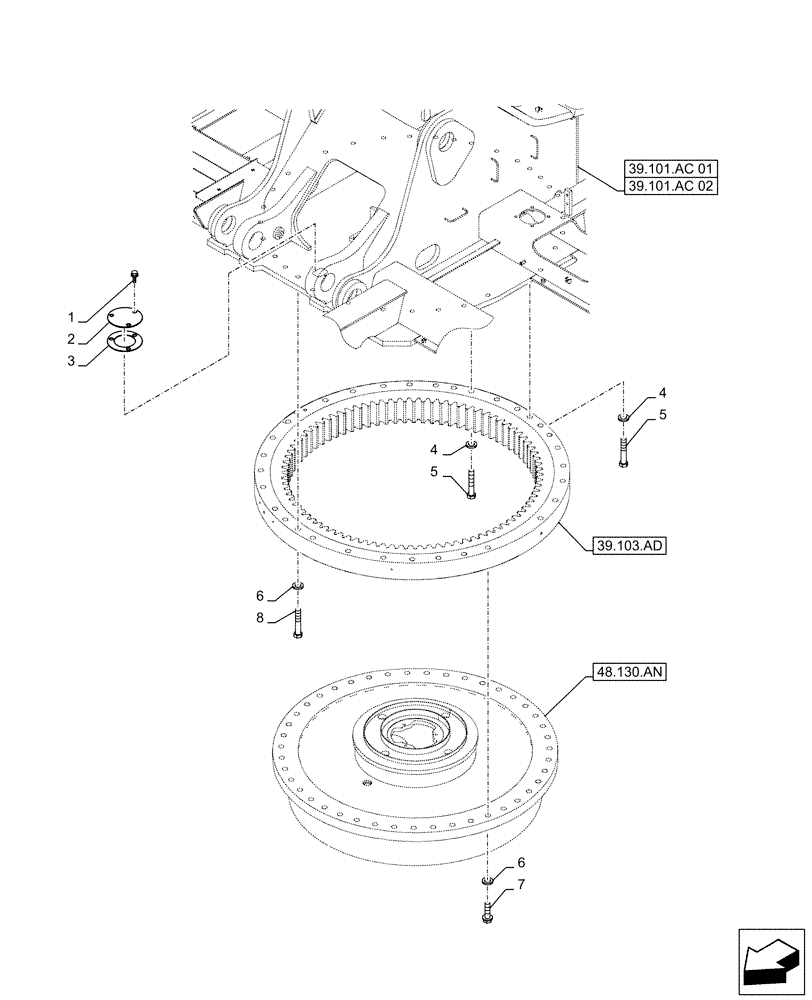

Запчасти Case CX500D RTC (39.103.AF) - SLEWING RING, MOUNTING, BOLT (39) - FRAMES AND BALLASTING

1

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

2

158929A1

LID

1шт.

3

158930A1

CORK SEAL

1шт.

4

157544A1

WASHER

2шт.

5

KTB13290

BOLT

2шт.

6

150822A1

WASHER,25mm ID x 48mm OD x 6mm Thk

85шт.

7

827-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

46шт.

8

828-24170

BOLT,Hex, M24 x 3 x 170mm, Cl 10.9

39шт.
