(35.104.AA[01]) - VAR - 461863 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX500D LC (35.104.AA[01]) - VAR - 461863 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

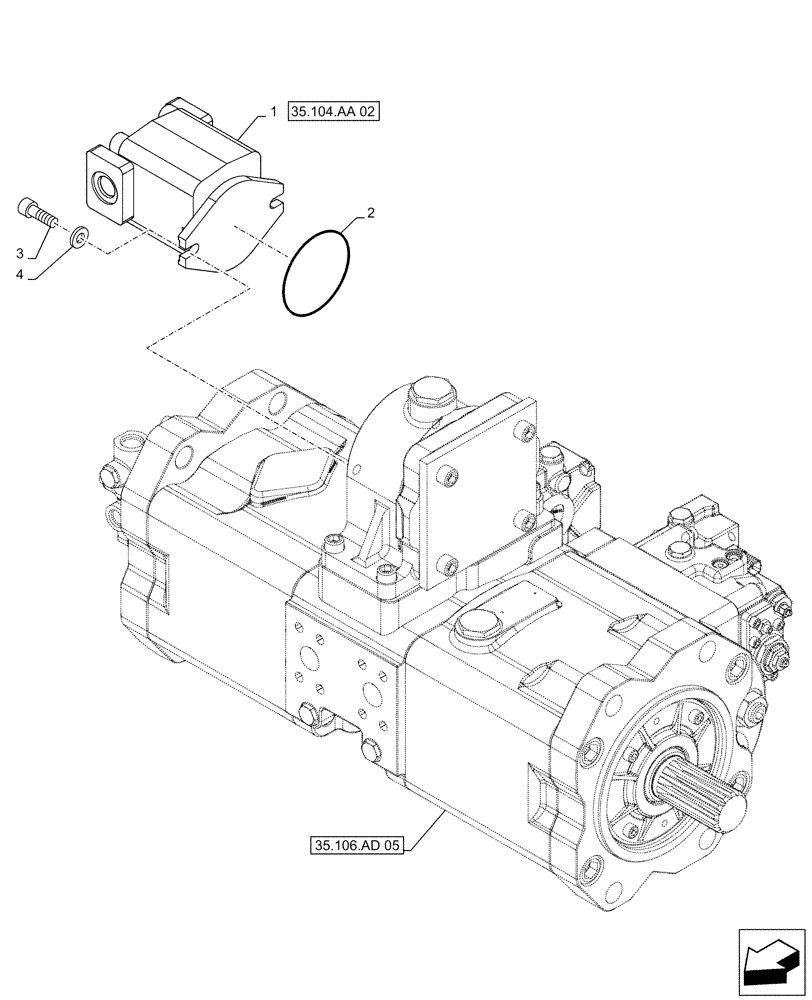

Схема запчастей Case CX500D LC - (35.104.AA[01]) - VAR - 461863 - HYDRAULIC PUMP, GEAR, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.104.aa 02
1
4
3
2
35.106.ad 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRJ10300

HYDRAULIC PUMP

ASSY

1шт.

2

UCD0096

O-RING

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

4

150409A1

WASHER

2шт.
