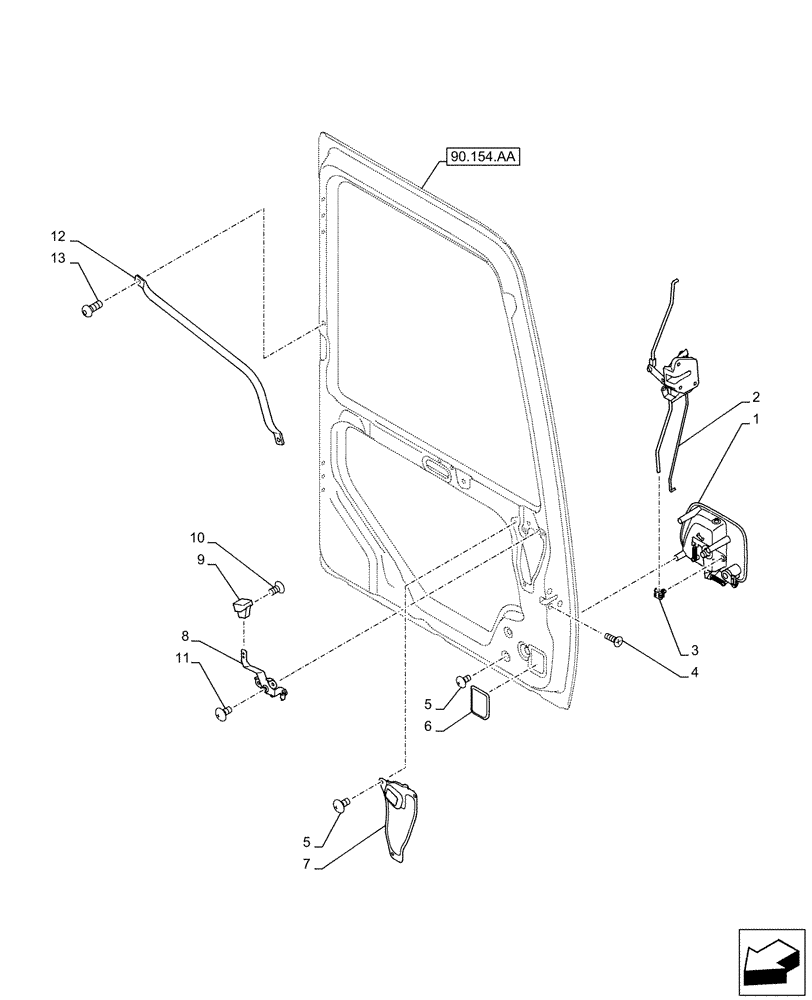

Запчасти Case CX500D LC (90.154.AC) - CAB DOOR, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN15570

HANDLE

1шт.

2

KHN15540

LH DOOR LOCK

1шт.

3

KHN15650

RUBBER JOINT

1шт.

4

KHN15550

SCREW

M6 x 1 x 16mm

3шт.

5

KHN2682

SCREW,Spcl

M6 x 1 x 12mm

6шт.

6

KHN15640

COVER

1шт.

7

KHN15580

COVER

1шт.

8

KHN15590

HANDLE

1шт.

9

KHN15600

KNOB

1шт.

10

KHN15610

SCREW

M4 x 0.7 x 8mm

2шт.

11

KHN18800

SCREW,Spcl, M6 x 12mm

2шт.

12

KHN15560

HANDRAIL

1шт.

13

KHN14160

BOLT,Spcl

2шт.
