Запчасти Case CX500D LC (90.124.AL[02]) - VAR - 781277 - SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

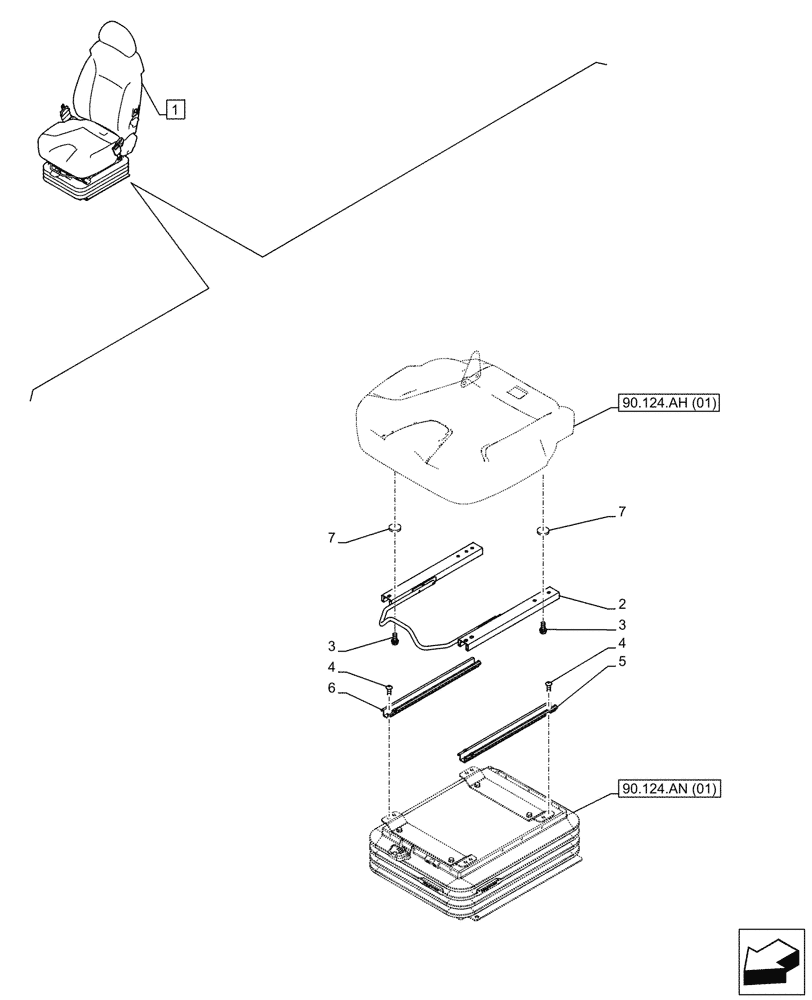

Схема запчастей Case CX500D LC - (90.124.AL[02]) - VAR - 781277 - SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.an (01)
4
7
6
3
5
3
7
1
4
2
90.124.ah (01)

Артикул

Название

Примечание

Количество

1

KHN42780

DRIVER SEAT

ASSY, Incl 2 - 7, Years: -31-JAN-16

1шт.

1

KHN42781

DRIVER SEAT

ASSY, Incl 2 - 7, Start Year: 01-FEB-16

1шт.

2

KHN40410

LEVER

1шт.

3

KHN40390

BOLT

4шт.

4

KHN40130

BOLT

4шт.

5

KHN40200

SLIDER

LH

1шт.

6

KHN40210

SLIDER

RH

1шт.

7

KHN40400

SCREW

4шт.

Выбрано товаров: 8
