Запчасти Case CX500D LC (90.105.CO[02]) - VAR - 461569 - SIDE, DOOR, RIGHT, ADDITIONAL, HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS

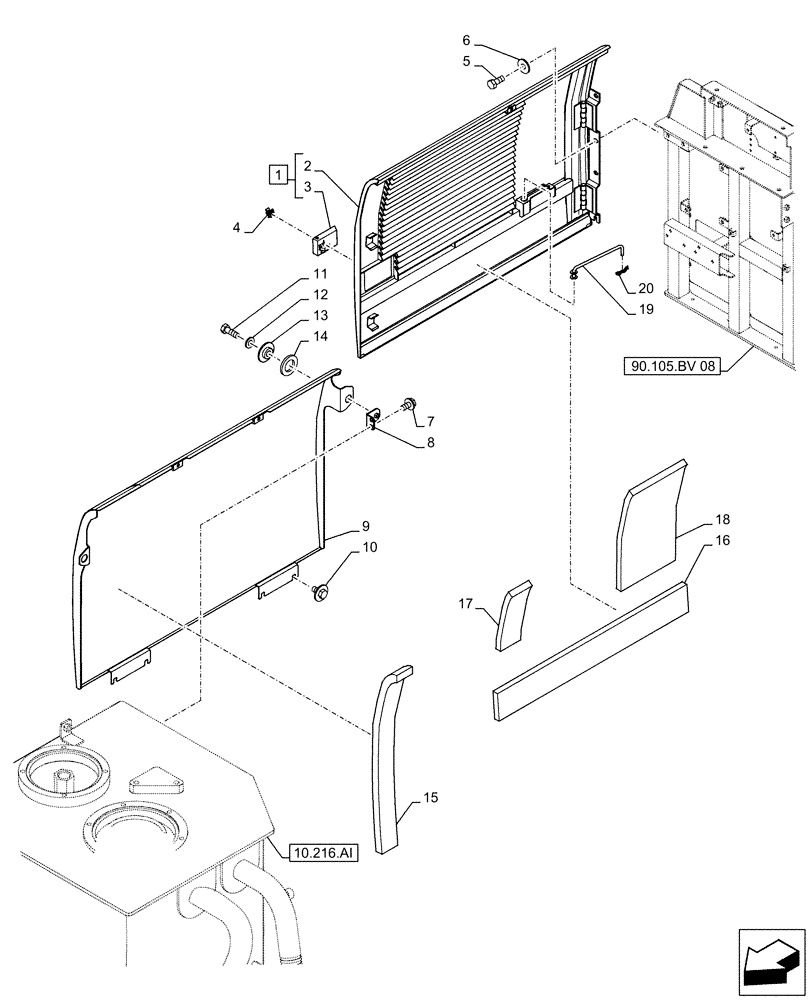

![Схема запчастей Case CX500D LC - (90.105.CO[02]) - VAR - 461569 - SIDE, DOOR, RIGHT, ADDITIONAL, HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/5392218.png)
90.105.bv 08
1
12
18
7
11
2
15
5
9
13
19
8
10
14
3
6
16
20
4
17
10.216.ai
№
Артикул
Название
Примечание
Количество
1
KTN17930Y2
DOOR
ASSY, Incl 2 - 3
1шт.
2
NSS
NOT SOLD SEPARAT
Door, Incl in 1
1шт.
3
KHN24520
LOCK
1шт.
4
KHN24530
LOCK CYLINDER
1шт.
5
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
4шт.
6
151161A1
WASHER
4шт.
7
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
8
KTN17950
BRACKET
4шт.
9
KTN17940Y2
COVER
1шт.
10
KHN12020
BOLT,Spcl
M12 x 25mm
4шт.
11
627-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd
2шт.
12
150811A1
WASHER
2шт.
13
162409A1
WASHER
2шт.
14
KHN28760
RUBBER WASHER
2шт.
15
KTN14070
INSULATION
2шт.
16
KTN16810
INSULATION
1шт.
17
KTN16800
INSULATION
1шт.
18
KTN16790
INSULATION
1шт.
19
KBN17140
STAY
1шт.
20
153181A1
COTTER PIN
1шт.
Выбрано товаров: 20
