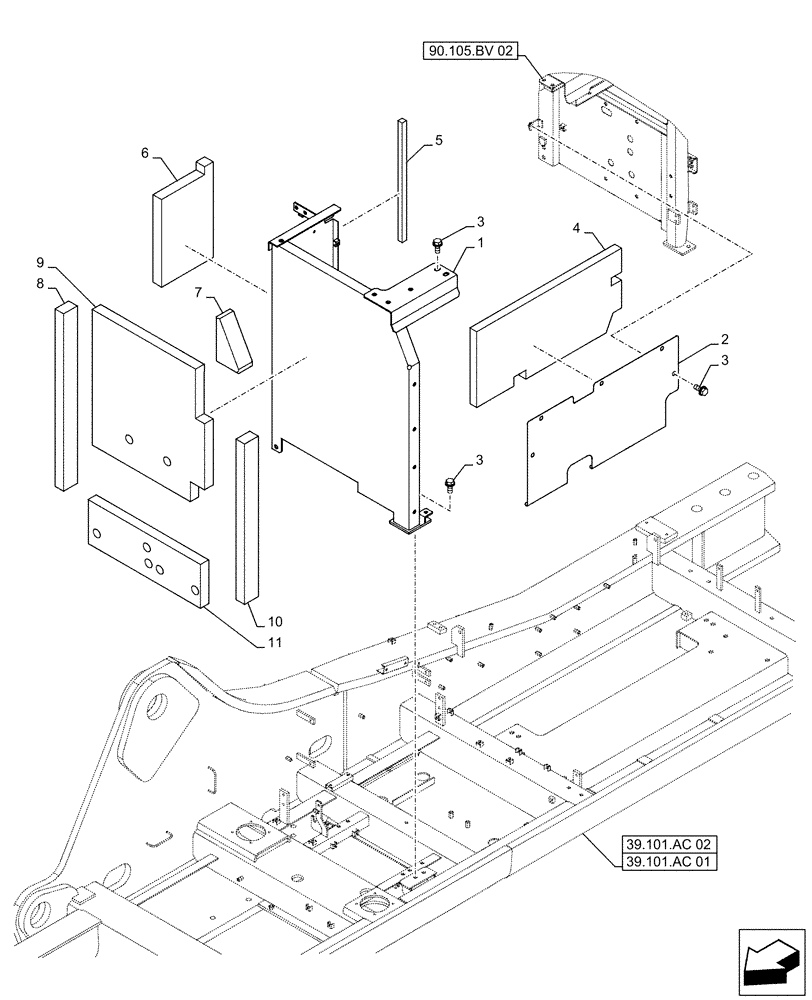

Запчасти Case CX500D LC (90.105.BV[03]) - STD + VAR - 461569, 481027 - HOUSING & COVERS, ADDITIONAL, HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX500D LC - (90.105.BV[03]) - STD + VAR - 461569, 481027 - HOUSING & COVERS, ADDITIONAL, HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/5392314.png)
39.101.ac 02
3
6
8
7
4
5
3
1
9
2
11
3
10
90.105.bv 02
39.101.ac 01
№
Артикул
Название
Примечание
Количество
1
KTN17800
FRAME
1шт.
2
KTN18050
COVER
1шт.
3
166352A1
BOLT
M12 x 30mm
14шт.
4
KTN16480
SEAL
1шт.
5
KAH14010
SEAL
1шт.
6
KTN18460
INSULATION
1шт.
7
KTN18170
SEAL
1шт.
8
KTN16440
SEAL
1шт.
9
KTN18180
INSULATION
1шт.
10
KTN18160
SEAL
1шт.
11
KTN17250
INSULATION
1шт.
Выбрано товаров: 11
