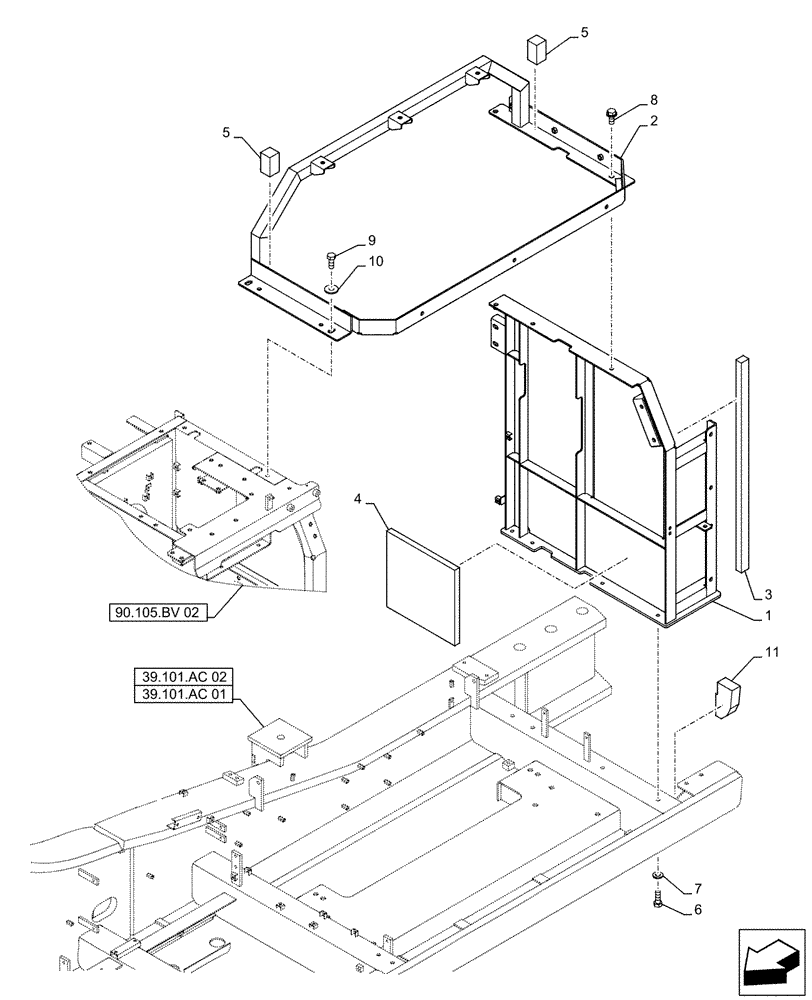

Запчасти Case CX500D LC (90.105.BV[01]) - STD + VAR - 461569, 481027 - HOUSING & COVERS, ADDITIONAL, HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KTN17820

FRAME

1шт.

2

KTN16050

FRAME

1шт.

3

KTN19530

SEAL

1шт.

4

KTN13860

INSULATION

1шт.

5

KTN16710

SEAL

2шт.

6

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

7

150811A1

WASHER

6шт.

8

166352A1

BOLT

M12 x 30mm

5шт.

9

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

10

151161A1

WASHER

2шт.

11

KTN18960

SEAL

1шт.
