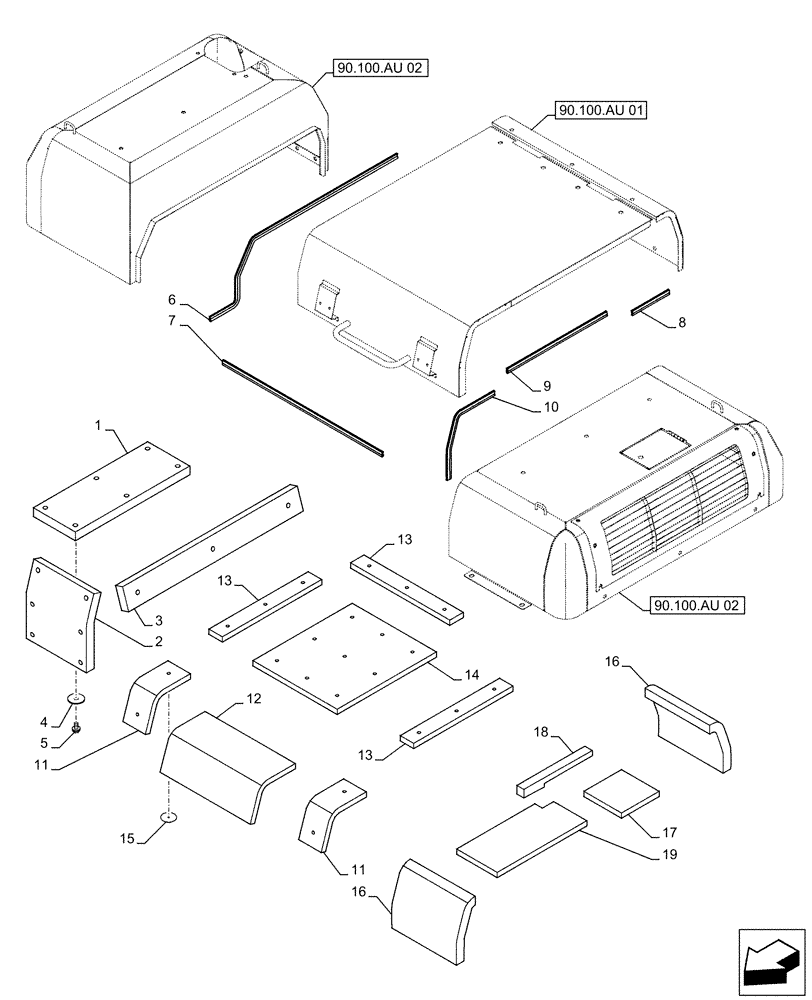

Запчасти Case CX500D LC (90.100.AU[03]) - STD + VAR - 461569, 481027 - ENGINE HOOD, INSULATING PANEL, ADDITIONAL, HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX500D LC - (90.100.AU[03]) - STD + VAR - 461569, 481027 - ENGINE HOOD, INSULATING PANEL, ADDITIONAL, HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/5393004.png)
90.100.au 02
17
5
16
13
1
6
8
13
9
7
2
19
3
10
18
11
13
16
12
14
4
15
11
90.100.au 01
90.100.au 02
№
Артикул
Название
Примечание
Количество
1
KTN16821
INSULATOR
1шт.
2
KTN16830
INSULATION
1шт.
3
KTN16840
INSULATION
1шт.
4
163356A1
WASHER
15шт.
5
166350A1
BOLT
M8 x 20mm
15шт.
6
KTN19520
TRIM
1450mm
1шт.
7
KHN43390
TRIM
1050mm
1шт.
8
KTN18950
TRIM
245mm
1шт.
9
KTN18930
TRIM
660mm
1шт.
10
KRN2089
TRIM
575mm
1шт.
11
KTN16880
INSULATION
2шт.
12
KTN16850
INSULATION
1шт.
13
KTN16890
INSULATION
3шт.
14
KTN16860
INSULATION
1шт.
15
KHN35020
WASHER
28шт.
16
KRN2792
NOISE PROTECTION
2шт.
17
KBN15001
INSULATION
1шт.
18
KTN16940
SEAL
1шт.
19
KTN16900
SEAL
1шт.
Выбрано товаров: 19
