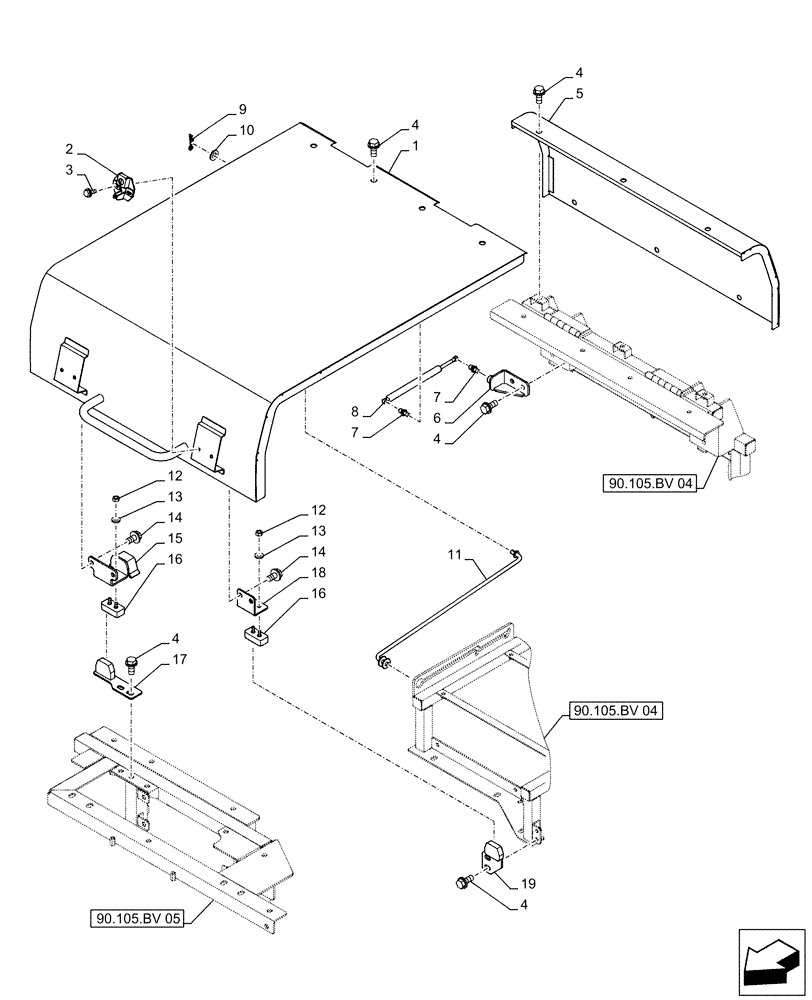

Запчасти Case CX500D LC (90.100.AU[01]) - STD + VAR - 461569, 481027 - ENGINE HOOD, ADDITIONAL, HANDRAIL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KTN17991G1

HOOD

1шт.

2

150785A1

STOP LOCK

2шт.

3

167182A1

BOLT,Sems, M8 x 25mm

4шт.

4

166352A1

BOLT

M12 x 30mm

18шт.

5

KTN18010G1

HOOD

1шт.

6

KTN18000

BRACKET

2шт.

7

KHN24170

BALL

4шт.

8

KTN16920

DAMPER

2шт.

9

153181A1

COTTER PIN

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

11

KTN16220

STAY

1шт.

12

162R008VR

NUT

4шт.

13

153081A1

WASHER

4шт.

14

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

15

KTN18041

BRACKET

1шт.

16

KSN20200

STOP

2шт.

17

KTN18020

BRACKET

1шт.

18

KTN18031

BRACKET

1шт.

19

KTN16250

BRACKET

1шт.
