Запчасти Case CX500D LC (88.100.55[34]) - DIA KIT, LEFT, SIDE CAMERA, LIGHT (88) - ACCESSORIES

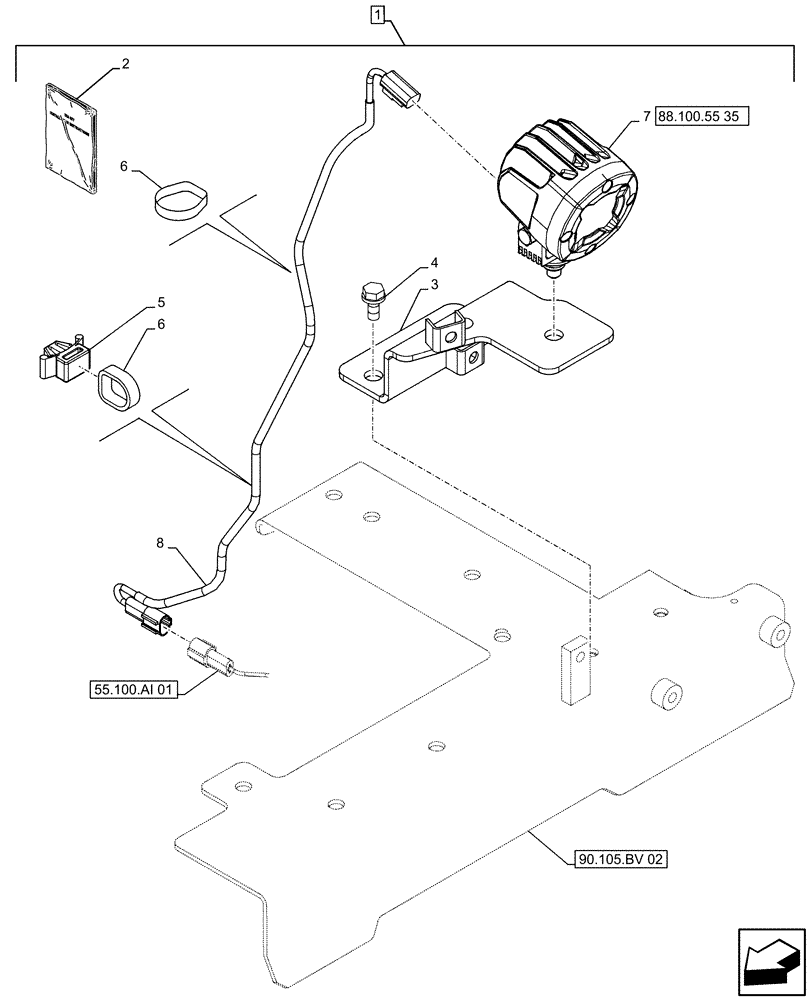

Схема запчастей Case CX500D LC - (88.100.55[34]) - DIA KIT, LEFT, SIDE CAMERA, LIGHT (88) - ACCESSORIES
90.105.bv 02
1
5
88.100.55 35
8
7
2
4
6
3
55.100.ai 01
6

Артикул

Название

Примечание

Количество

1

KG0TP714-00

CONSTRUCTION DIA

Left Side Camera, Light, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47928822

INSTRUCTION

1шт.

2

47929370

INSTRUCTION

1шт.

3

KHR45660

BRACKET

1шт.

4

166052A1

BOLT

M10 x 25mm

2шт.

5

KHR10220

MOUNTING CLIP

3шт.

6

150496A1

MOUNTING CLIP

250mm

8шт.

7

KHR37950

WORK LAMP

Led 24V 13W, ASSY

1шт.

8

KHR45690

WIRE HARNESS

Lamp Working, LH

1шт.

Выбрано товаров: 10
