Запчасти Case CX500D LC (88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS (88) - ACCESSORIES

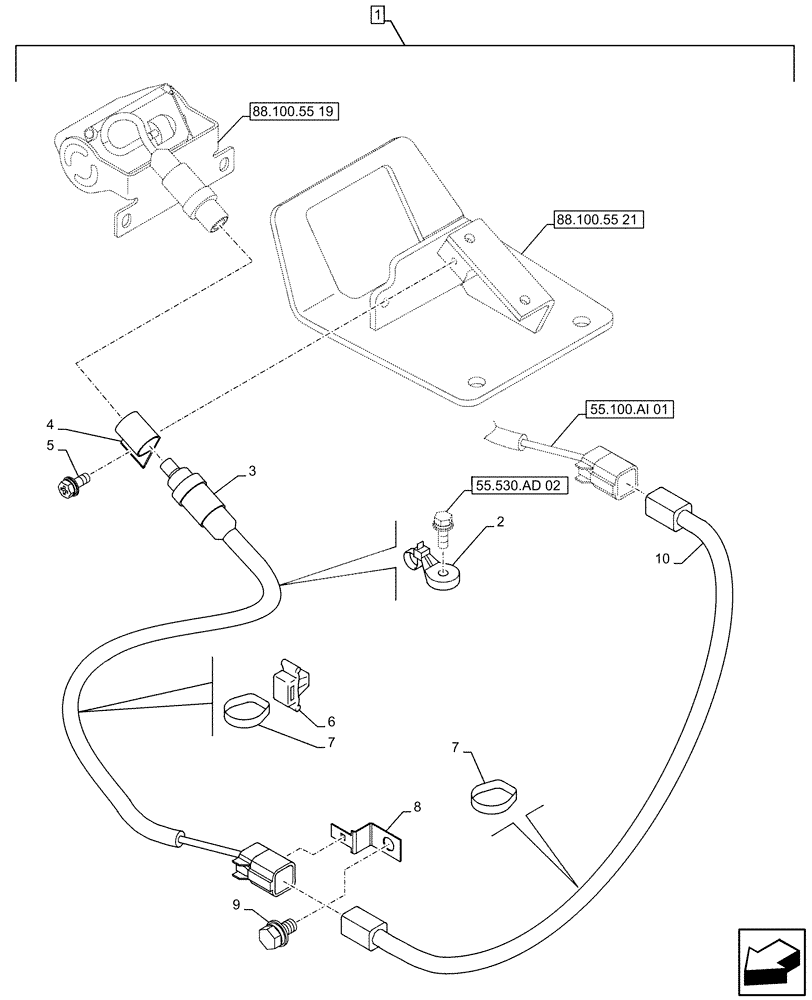

Схема запчастей Case CX500D LC - (88.100.55[20]) - DIA KIT, RIGHT, SIDE CAMERA, WIRE HARNESS (88) - ACCESSORIES
88.100.55 21
9
55.530.ad 02
88.100.55 19
6
8
4
3
7
1
55.100.ai 01
2
5
10
7

Артикул

Название

Примечание

Количество

1

KG0TP707-00

CONSTRUCTION DIA

Right Side Camera, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR2583

CLAMP

1шт.

3

KHR45200

WIRE HARNESS

Camera

1шт.

4

157806A1

COLLAR

1шт.

5

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

1шт.

6

KHR10220

MOUNTING CLIP

2шт.

7

150496A1

MOUNTING CLIP

250mm

38шт.

8

165405A1

CLIP

1шт.

9

159602A1

BOLT,Sems, Hex, M6 x 16mm

1шт.

10

KHR41630

WIRE HARNESS

From Camera to General harness

1шт.

Выбрано товаров: 11
