Запчасти Case CX500D LC (88.100.55[03]) - DIA KIT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES

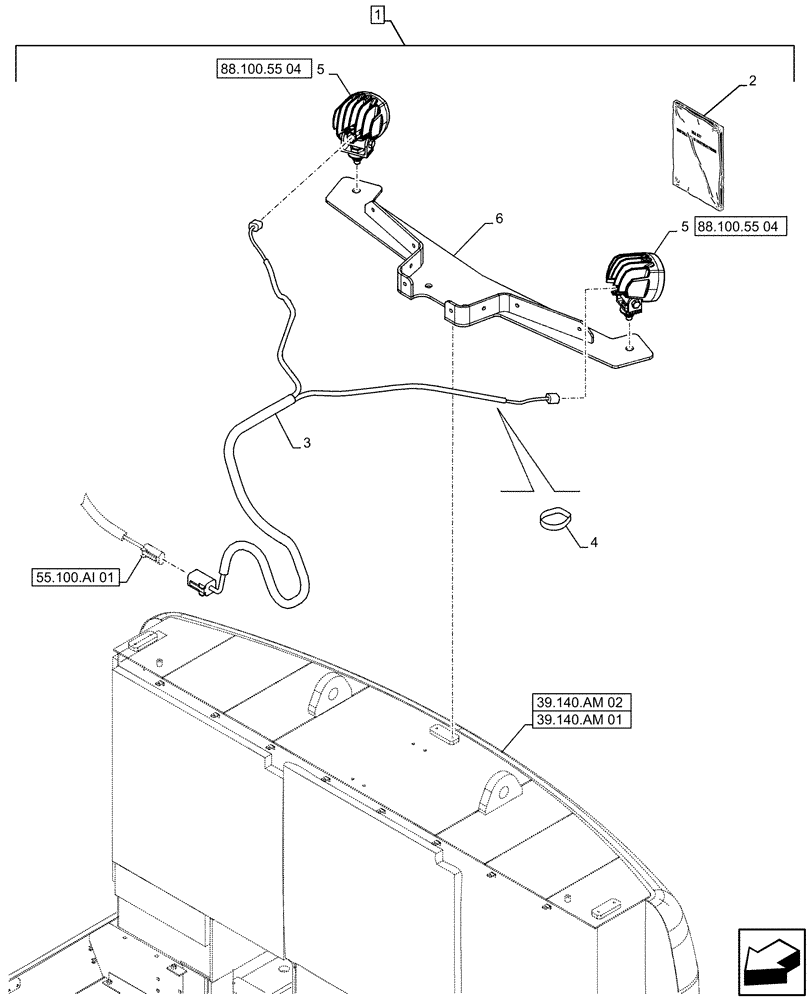

Схема запчастей Case CX500D LC - (88.100.55[03]) - DIA KIT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
39.140.am 01
55.100.ai 01
39.140.am 02
2
4
3
5
6
88.100.55 04
5
1
88.100.55 04

Артикул

Название

Примечание

Количество

1

KG0TP712-00

CONSTRUCTION DIA

Rear View Camera, Light, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47928820

INSTRUCTION

1шт.

2

47929368

INSTRUCTION

1шт.

3

KHR45670

WIRE HARNESS

1шт.

4

150496A1

MOUNTING CLIP

250mm

14шт.

5

KHR37950

WORK LAMP

Led 24V 13W, ASSY

2шт.

6

KHR45640

BRACKET

1шт.

Выбрано товаров: 8
