Запчасти Case CX500D LC (88.100.55[02]) - DIA KIT, FUEL TRANSFER PUMP (88) - ACCESSORIES

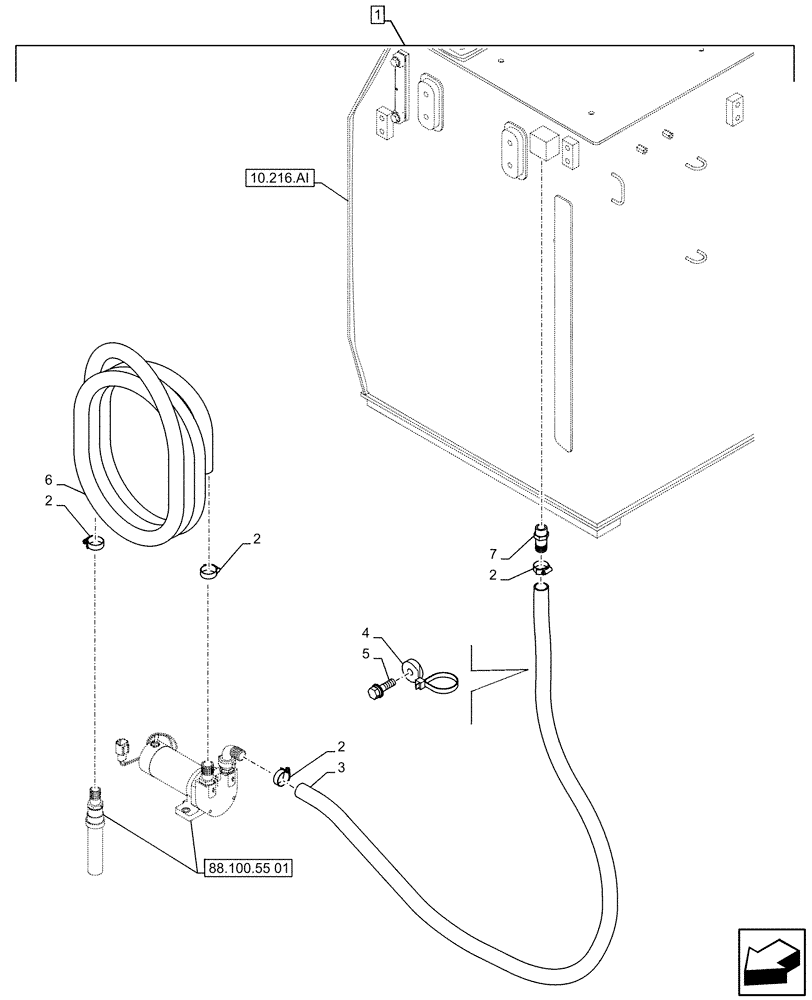

Схема запчастей Case CX500D LC - (88.100.55[02]) - DIA KIT, FUEL TRANSFER PUMP (88) - ACCESSORIES
10.216.ai
88.100.55 01
2
6
2
2
2
5
1
4
7
3

Артикул

Название

Примечание

Количество

1

KG0TR243-00

CONSTRUCTION DIA

Fuel Feed Pump, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

157917A1

COLLAR

4шт.

3

KHR41150

FUEL HOSE

1900mm, from Fuel Tank to Fuel transfer Pump

1шт.

4

KHR2584

CLAMP

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

6

KHR11460

FUEL HOSE

4000mm, from Fuel transfer Pump to Valve Section

1шт.

7

KHR11480

LUBE NIPPLE

1шт.

Выбрано товаров: 8
