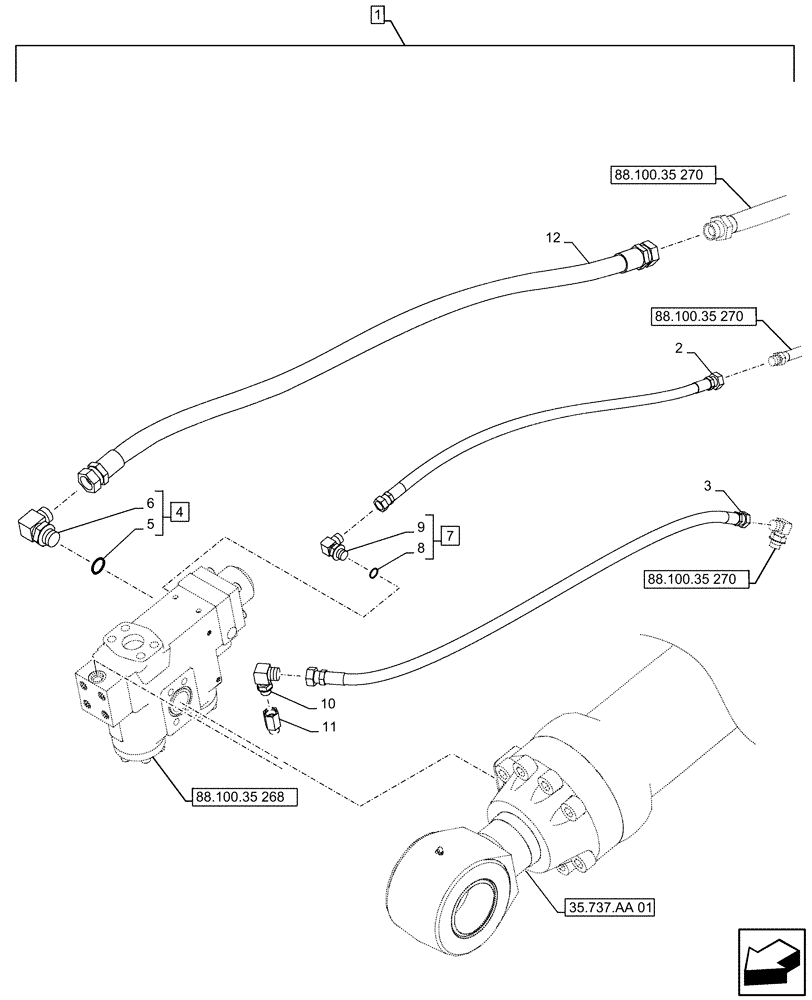

Запчасти Case CX500D LC (88.100.35[276]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

1

KG0TP705-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ35500

HYDRAULIC HOSE

9mm ID x 4300mm, to Manifold Valve

1шт.

3

KHJ35490

HYDRAULIC HOSE

12mm ID x 4100mm, o Manifold Valve

1шт.

4

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, Incl 5, 6

1шт.

5

150542A1

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

7

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

ASSY, Incl 8, 9

1шт.

8

150031A1

O-RING,10mm ID x 24mm OD

1шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 7

1шт.

10

157937A1

ELBOW

1шт.

11

KHV0373

STUD

1шт.

12

KHJ35510

HYDRAULIC HOSE

19mm ID x 3650mm, to Manifold Valve

1шт.
