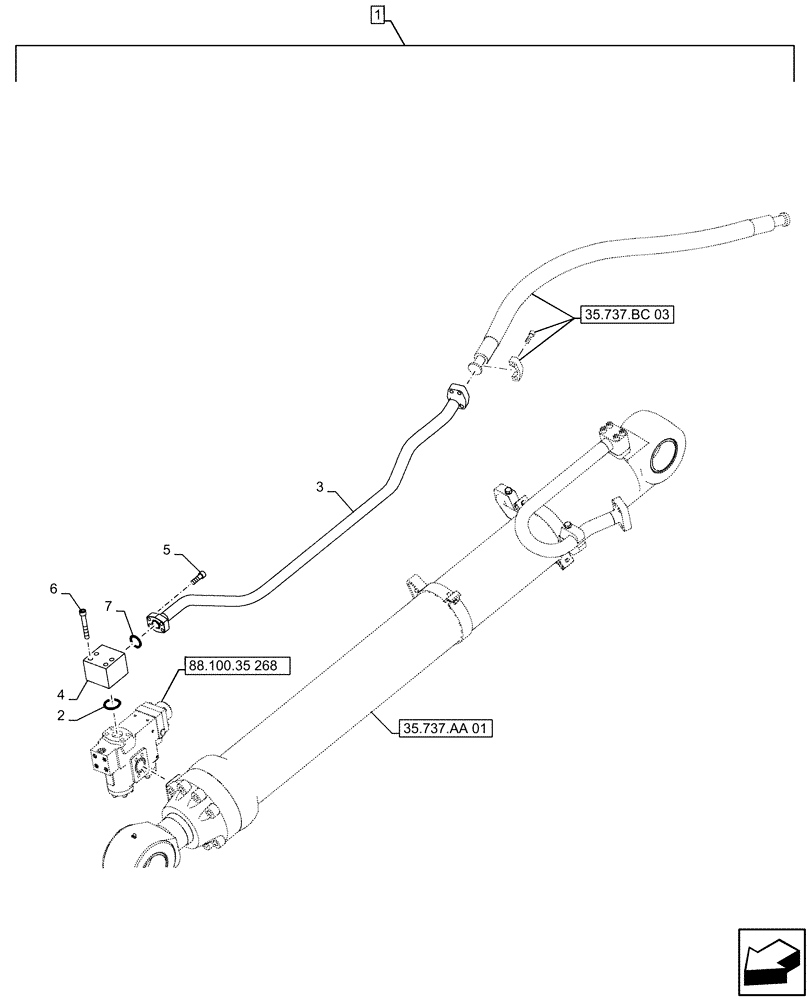

Запчасти Case CX500D LC (88.100.35[269]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

1

KG0TP705-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

168211A1

O-RING

1шт.

3

KTV20750

PIPE

1шт.

4

KSV1606

MANIFOLD

1шт.

5

862-14040

HEX SOC SCREW,M14 x 40mm, Cl 12.9

4шт.

6

162030A1

BOLT,Hex Skt Hd

4шт.

7

164450A1

O-RING

1шт.
