(88.100.35[266]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE

Запчасти Case CX500D LC (88.100.35[266]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES

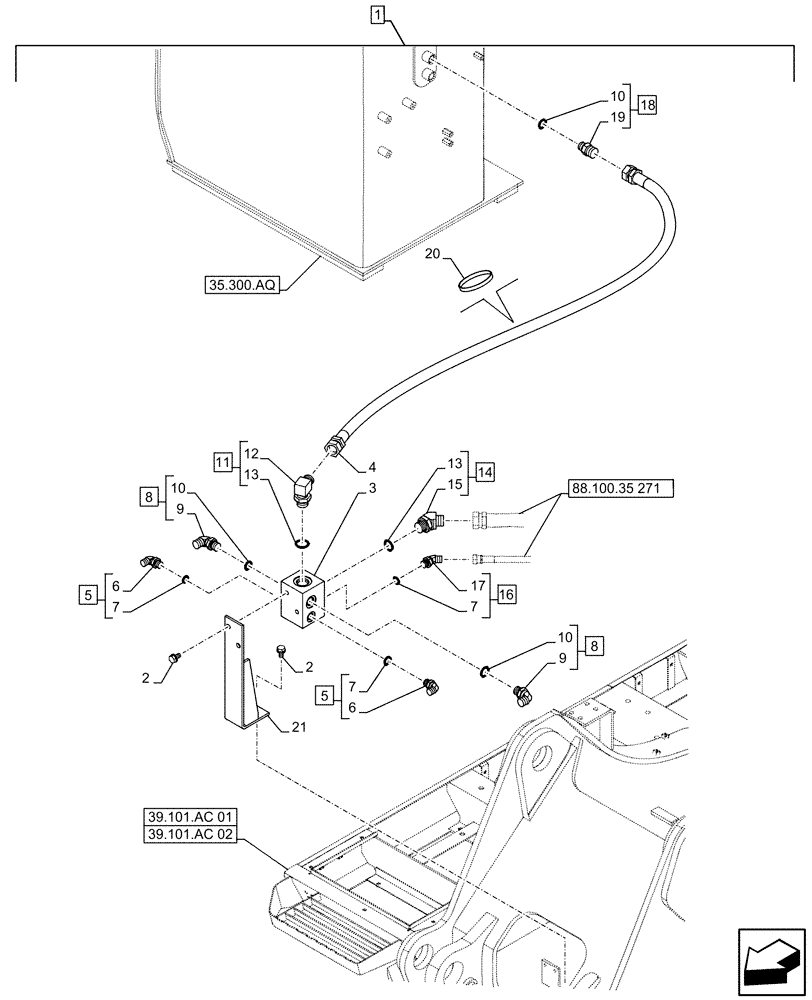

Схема запчастей Case CX500D LC - (88.100.35[266]) - DIA KIT, SAFETY VALVE, ARM, LIFT CYLINDER, CHECK VALVE, LINE (88) - ACCESSORIES
2
10
19
5
13
10
39.101.ac 01
39.101.ac 02
18
7
6
5
15
8
9
88.100.35 271
12
4
7
7
21
11
13
14
6
10
20
8
3
2
17
16
9
1
35.300.aq
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP705-00

CONSTRUCTION DIA

Hose Burst Check Valve, Incl 2 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20mm

4шт.

3

KTJ12320

MANIFOLD VALVE

1шт.

4

KRJ6705

HYDRAULIC HOSE

2100mm, from Sump Tank to Manifold Valve

1шт.

5

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 6, 7 (Qty 2)

2шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 5

2шт.

7

150031A1

O-RING,10mm ID x 24mm OD

3шт.

8

KHJ28600

ELBOW

ASSY, G1/2" x G1/2", Incl 9, 10 (Qty 2)

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

2шт.

10

150539A1

O-RING

3шт.

11

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 12, 13 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

13

150542A1

O-RING

2шт.

14

157586A1

ELBOW

ASSY, G3/4" x G3/4", Incl 13 (Qty 1), 15

1шт.

15

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 14

1шт.

16

KHJ28640

ELBOW

ASSY, G3/8" x G3/8", Incl 7 (Qty 1), 17

1шт.

17

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 16

1шт.

18

161102A1

ADAPTER

ASSY, Incl 10 (Qty 1), 19

1шт.

19

NSS

NOT SOLD SEPARAT

Fitting, Incl in 18

1шт.

20

150071A1

MOUNTING CLIP

374mm

11шт.

21

KTJ12330

BRACKET

1шт.
