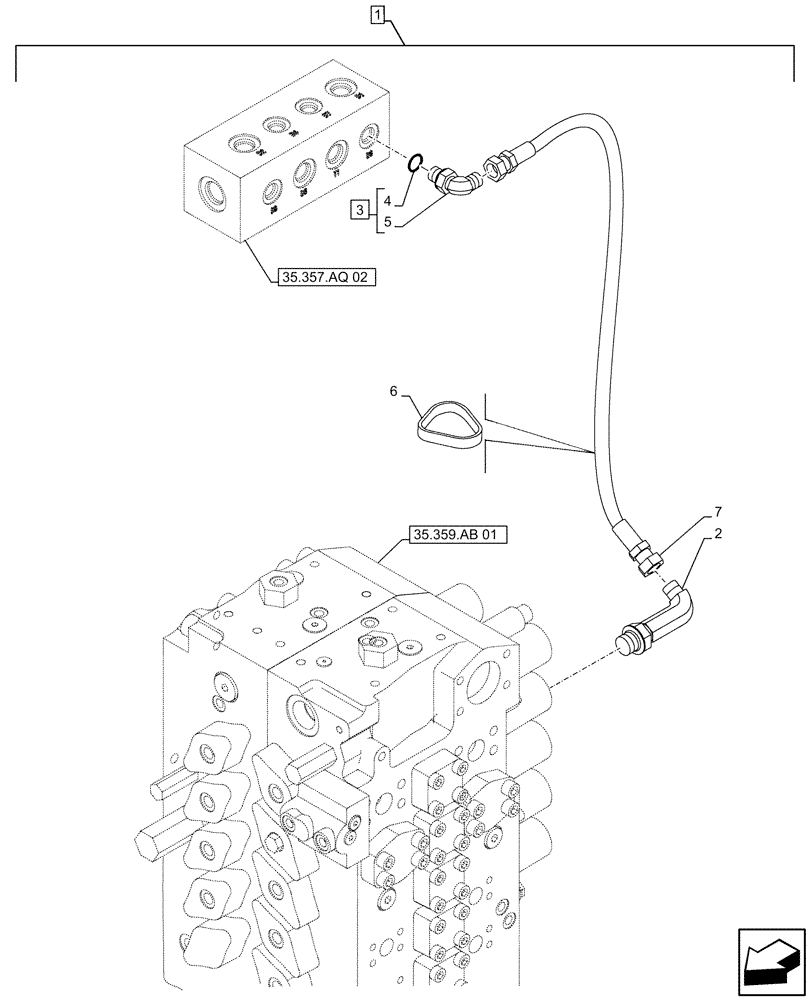

Запчасти Case CX500D LC (88.100.35[264]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

1

KG0TP651-00

CONSTRUCTION DIA

Single Acting Circuit, Pedal, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28880

ELBOW

G3/8" x G1/4"

1шт.

3

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 4, 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

6

150496A1

MOUNTING CLIP

250mm

5шт.

7

KHJ2051

HOSE

6mm ID x 1050mm

1шт.
