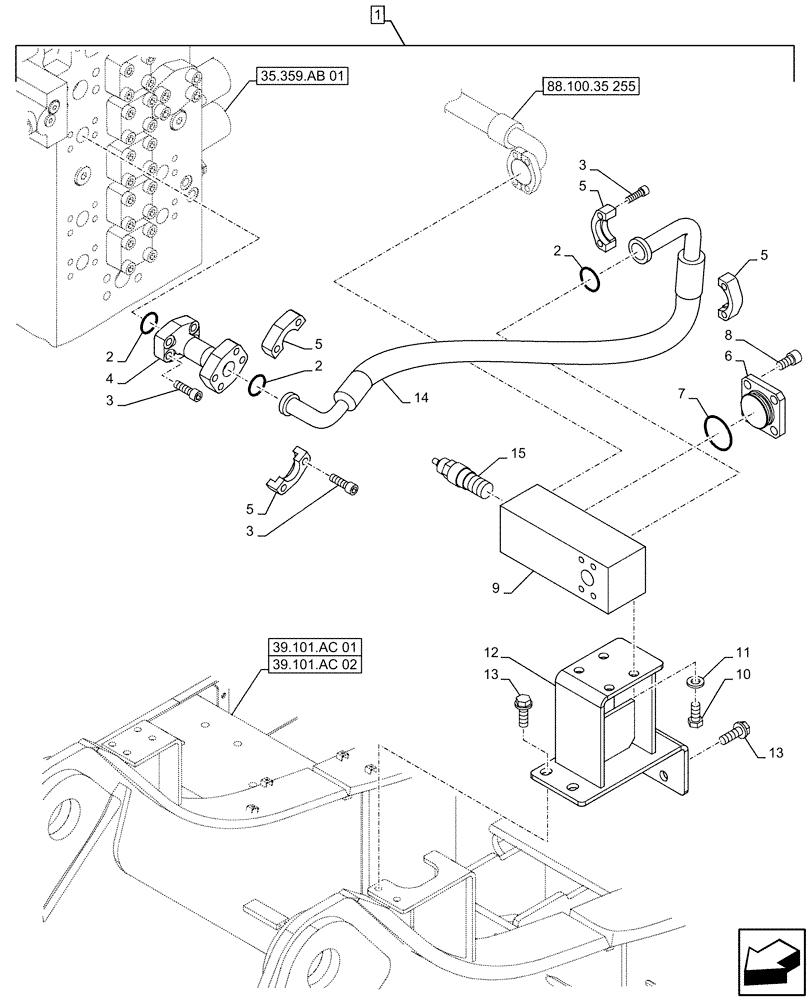

Запчасти Case CX500D LC (88.100.35[256]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES

1

KG0TP651-00

CONSTRUCTION DIA

Single Acting Circuit, Pedal, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

164450A1

O-RING

3шт.

3

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

12шт.

4

KTJ17110

PIPE

1шт.

5

150124A1

FLANGE

4шт.

6

163435A1

COVER

1шт.

7

154640A1

O-RING

1шт.

8

862-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

4шт.

9

KSJ2740

MANIFOLD

1шт.

10

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

11

157548A1

WASHER

M16

4шт.

12

KTJ16620

BRACKET

1шт.

13

165929A1

BOLT,Sems, M16

M16 x 50mm

4шт.

14

KTJ16900

HYDRAULIC HOSE

32mm ID x 980mm

1шт.

15

162656A1

VALVE

Relief

1шт.
