Запчасти Case CX500D LC (88.100.35[254]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

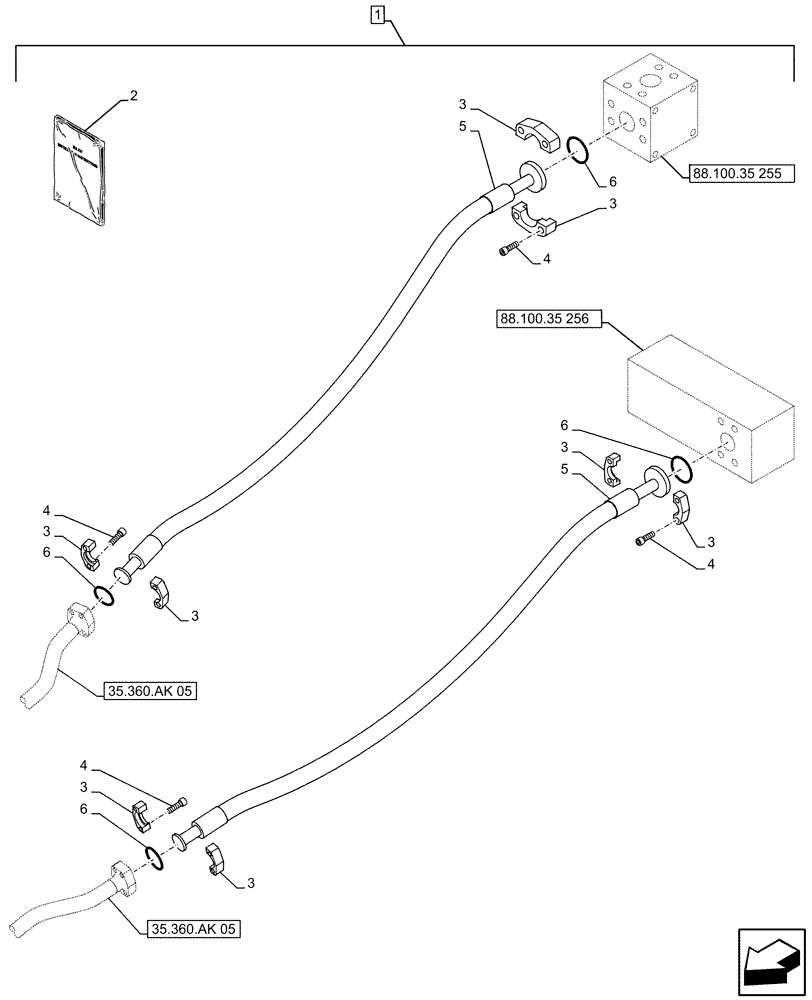

![Схема запчастей Case CX500D LC - (88.100.35[254]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5404345.png)
88.100.35 256
4
3
2
3
1
3
6
6
4
88.100.35 255
35.360.ak 05
6
4
3
3
4
3
5
35.360.ak 05
6
3
3
5
№
Артикул
Название
Примечание
Количество
1
KG0TP651-00
CONSTRUCTION DIA
Single Acting Circuit, Pedal, Incl 2 - 6
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
47960353
INSTRUCTION
1шт.
3
150124A1
FLANGE
8шт.
4
108R014Y045R
BOLT,Hex Skt, M14 x 45mm, Cl 12.9
16шт.
5
KTJ12390
HYDRAULIC HOSE
32mm ID x 1850mm, To Stop Valve
2шт.
Выбрано товаров: 7
