(88.100.35[253]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, CLAMP

Запчасти Case CX500D LC (88.100.35[253]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, CLAMP (88) - ACCESSORIES

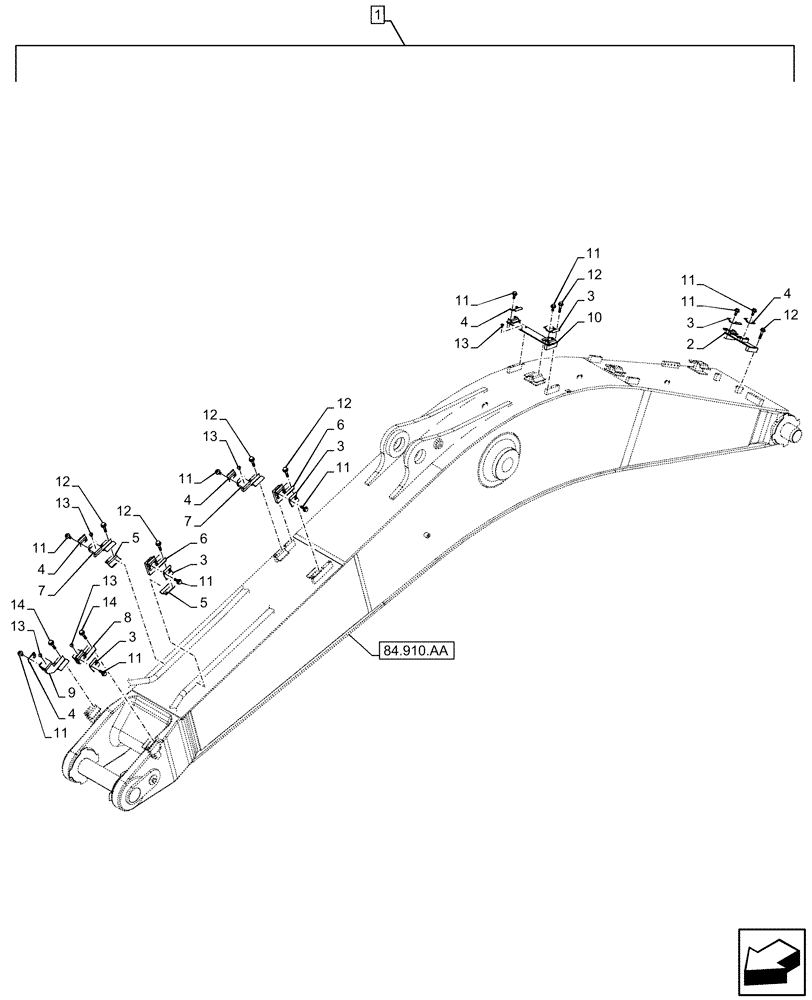

Схема запчастей Case CX500D LC - (88.100.35[253]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, CLAMP (88) - ACCESSORIES
13
84.910.aa
14
3
11
12
13
11
13
6
12
11
3
11
12
3
10
11
4
11
12
5
4
7
6
13
3
3
4
11
8
4
1
2
13
11
11
7
12
5
9
14
4
11
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP688-00

CONSTRUCTION DIA

Second Option Line, Boom, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTV12830

BAR

1шт.

3

KHV10450

COLLAR CLAMP

6шт.

4

KHV10460

COLLAR CLAMP

6шт.

5

KHV13360

CLAMP

2шт.

6

KTV19700

BAR

2шт.

7

KTV19740

BAR

2шт.

8

KTV19750

BAR

1шт.

9

KTV19760

BAR

1шт.

10

KTV21060

BAR

2шт.

11

166352A1

BOLT

30шт.

12

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

14шт.

13

KHJ15080

CAP

8шт.

14

KHV11670

BOLT

4шт.
