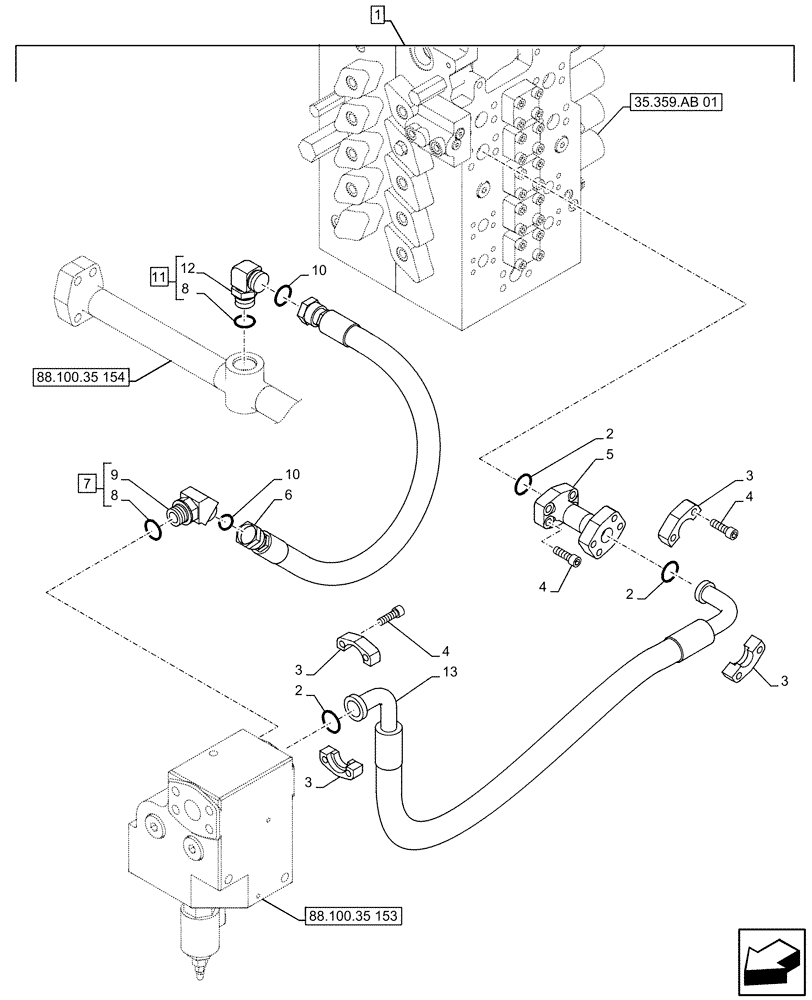

Запчасти Case CX500D LC (88.100.35[155]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SELECTOR, VALVE (88) - ACCESSORIES

1

KG0TP657-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

164450A1

O-RING

3шт.

3

150124A1

FLANGE

4шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

12шт.

5

KTJ17110

PIPE

1шт.

6

KTJ17680

HYDRAULIC HOSE

25mm ID x 790mm

1шт.

7

KHJ11370

ELBOW

ASSY, Incl 8 (Qty 1), 9

1шт.

8

154523A1

O-RING

2шт.

9

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 7

1шт.

10

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

11

KHJ1805

ELBOW

ASSY, Incl 8 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

KTJ16060

HYDRAULIC HOSE

32mm ID x 990mm

1шт.
