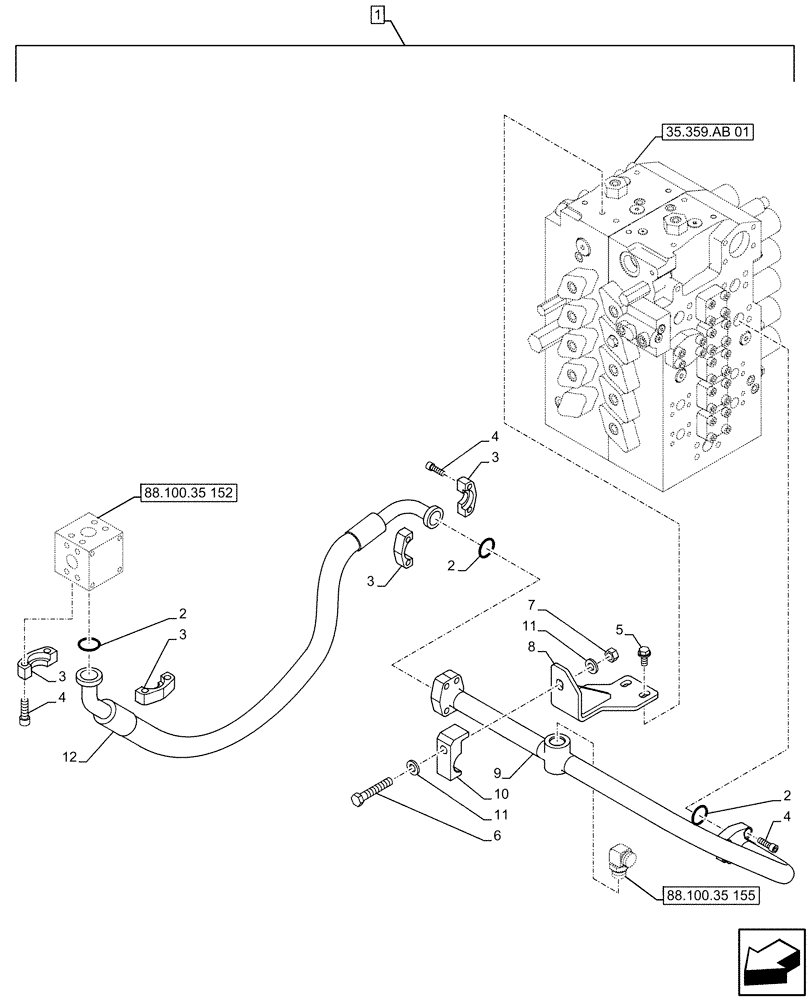

Запчасти Case CX500D LC (88.100.35[154]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES

1

KG0TP657-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

164450A1

O-RING

3шт.

3

150124A1

FLANGE

4шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

12шт.

5

166352A1

BOLT

M12 x 30mm

2шт.

6

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

7

829-1416

NUT,M16, Cl 10

1шт.

8

KTJ17700

BRACKET

1шт.

9

KTJ17710

PIPE

1шт.

10

KTV1209

CLAMP

1шт.

11

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

2шт.

12

KTJ17690

HYDRAULIC HOSE

32mm ID x 760mm

1шт.
