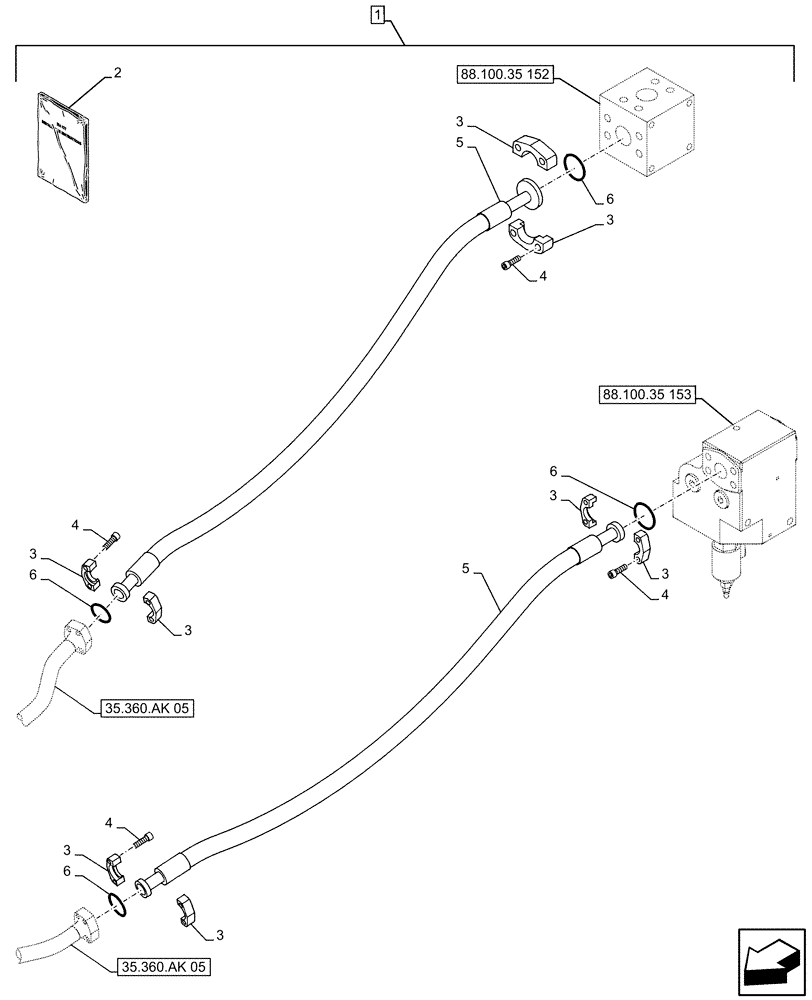

Запчасти Case CX500D LC (88.100.35[151]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

1

KG0TP657-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47960358

INSTRUCTION

1шт.

3

150124A1

FLANGE

G1 1/4"

8шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

16шт.

5

KTJ12390

HYDRAULIC HOSE

32mm ID x 1850mm, to Stop Valve

2шт.

6

164450A1

O-RING

4шт.
