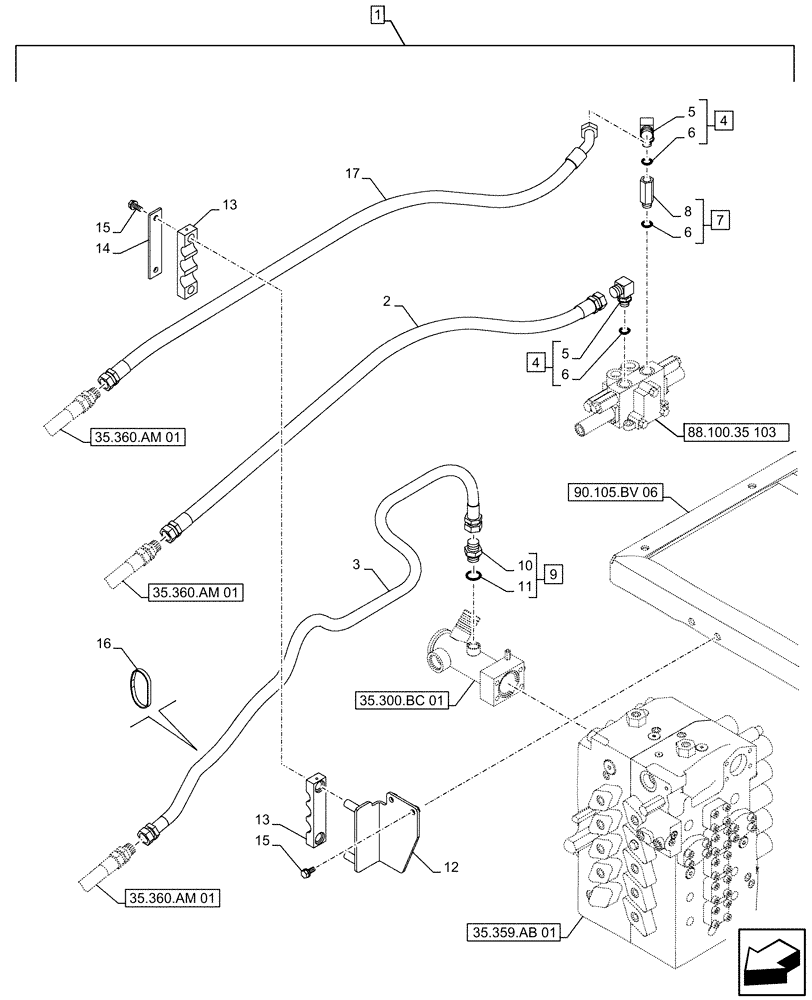

Запчасти Case CX500D LC (88.100.35[108]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

1

KG0TP663-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTJ16140

HYDRAULIC HOSE

19mm ID x 1580mm, From Bucket Valve to Stop Valve

1шт.

3

KTJ16160

HYDRAULIC HOSE

19mm ID x 1650mm, From Main Control Valve to Stop Valve

1шт.

4

168609A1

ELBOW

ASSY, G1/2" x G3/4", Incl 5, 6 (Qty 2)

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

2шт.

6

154487A1

O-RING

3шт.

7

KHJ1070

STUD

ASSY, Incl 6 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

150542A1

O-RING

1шт.

12

KTJ16170

BRACKET

1шт.

13

KTJ16180

CLAMP

2шт.

14

KTJ16190

BRACKET

1шт.

15

166052A1

BOLT

M10 x 25mm

4шт.

16

150496A1

MOUNTING CLIP

250mm

1шт.

17

KTJ16150

HYDRAULIC HOSE

19mm ID x 1700mm, From Bucket Valve to Stop Valve

1шт.
