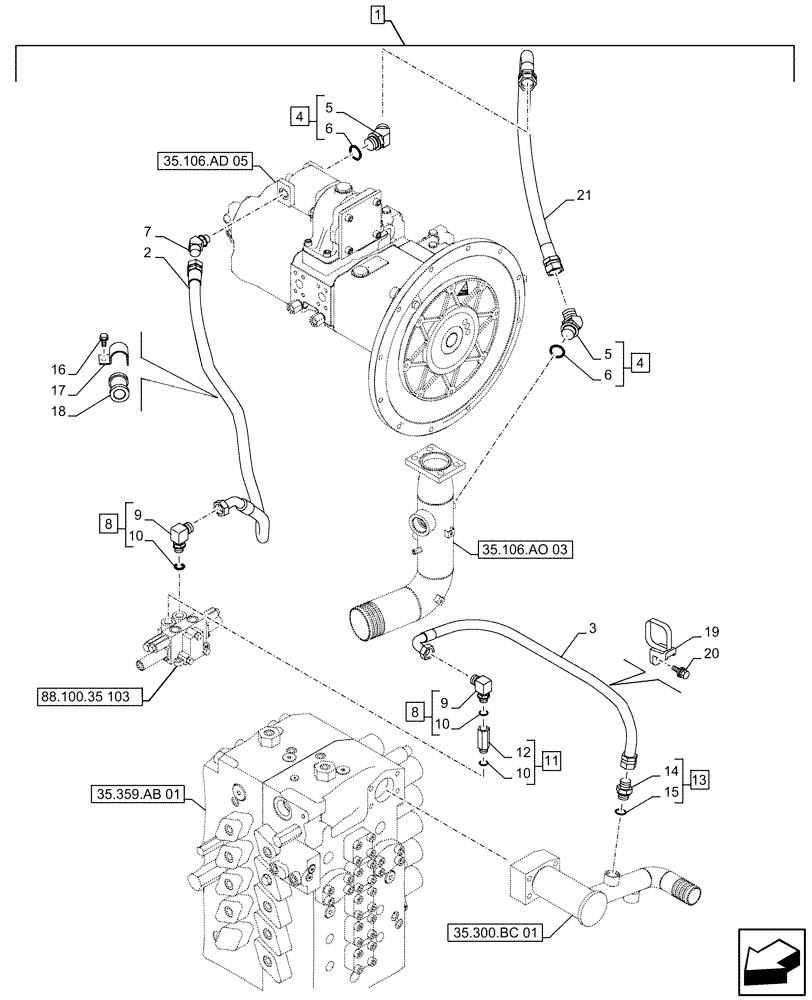

Запчасти Case CX500D LC (88.100.35[105]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, VARIABLE DELIVERY HYDRAULIC PUMP, LINE (88) - ACCESSORIES

1

KG0TP663-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 21

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTJ16030

HYDRAULIC HOSE

19mm ID x 1560mm

1шт.

3

KAJ3619

HYDRAULIC HOSE,19mm ID x 950mm L

1шт.

4

157587A1

ELBOW

ASSY, Incl 5, 6

2шт.

5

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 4

2шт.

6

152211A1

O-RING

2шт.

7

163005A1

ELBOW

1шт.

8

168609A1

ELBOW

ASSY, G1/2" x G3/4", Incl 9, 10 (Qty 2)

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

2шт.

10

154487A1

O-RING

3шт.

11

KHJ1070

STUD

ASSY, Incl 10 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

1шт.

15

150542A1

O-RING

1шт.

16

166052A1

BOLT

M10 x 25mm

2шт.

17

KHJ2025

CLAMP

2шт.

18

KHJ2023

HOSE CLAMP

2шт.

19

KHR2581

CLAMP

2шт.

20

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.

21

KSJ12940

HYDRAULIC HOSE

25mm ID x 910mm

1шт.
