Запчасти Case CX500D LC (88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (88) - ACCESSORIES

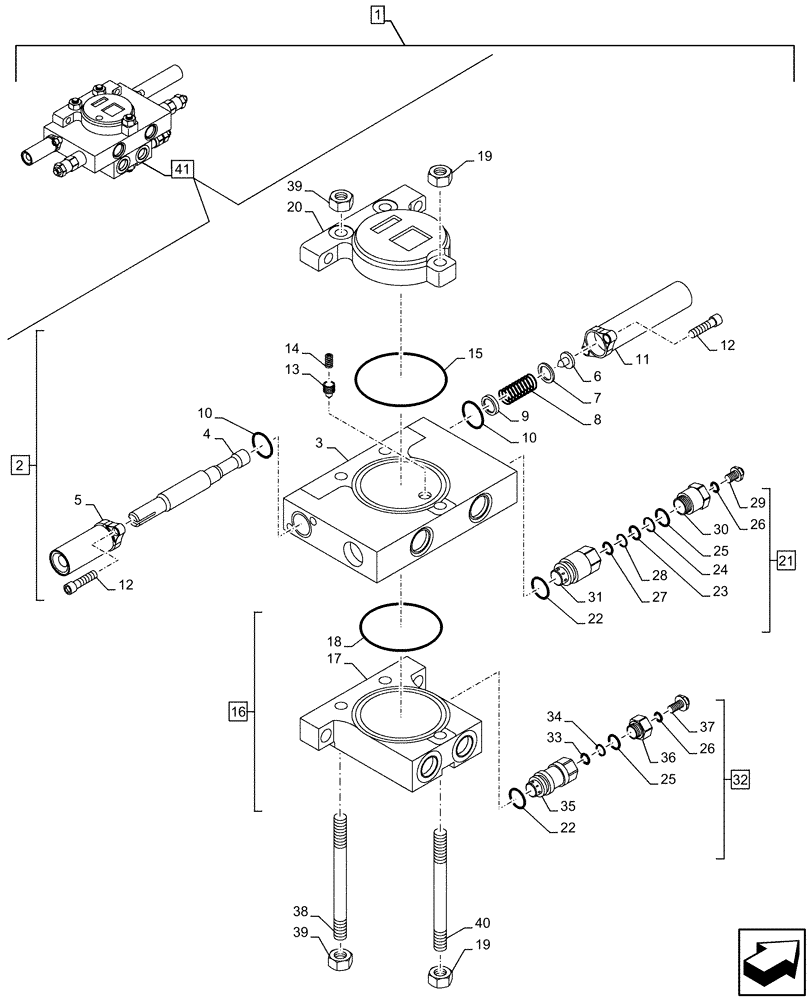

Схема запчастей Case CX500D LC - (88.100.35[104]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (88) - ACCESSORIES
36
40
41
14
20
39
26
38
5
3
30
9
22
39
27
2
28
19
26
35
23
34
6
18
25
31
17
7
10
37
15
12
22
32
16
8
4
11
12
25
10
29
33
19
1
24
13
21

Артикул

Название

Примечание

Количество

1

KG0TP663-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 41

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

LJ00881

HYD VALVE SECTION

ASSY, Control Section, Incl 3 - 15

1шт.

3

NSS

NOT SOLD SEPARAT

Inlet Section Valve, Incl in 2

1шт.

4

NSS

NOT SOLD SEPARAT

Spool, Incl in 2

1шт.

5

LR00821

CAP

1шт.

6

LF00036

CAP

1шт.

7

163393A1

SPRING SEAT

1шт.

8

LG00411

COMPRESSION SPRING

1шт.

9

LR00823

VALVE SEAT

1шт.

10

LBC0058

O-RING

2шт.

11

LR00822

CAP

1шт.

12

LA00810

SPECIAL BOLT

M6 x 18mm

4шт.

13

TPC0004

VALVE POPPET

1шт.

14

TSC0004

SPRING

1шт.

15

LBQ5228

O-RING

1шт.

16

LNC0246

HYD VALVE SECTION

ASSY, Inlet Section, Incl 17, 18

1шт.

17

LT00115

HOUSING

1шт.

18

LBQ5228

O-RING

1шт.

19

TUC0008

SPECIAL NUT

2шт.

20

LNC0015

HYD VALVE SECTION

Outlet Section

1шт.

21

167387A1

VALVE, PRESSURE RELI

ASSY, Incl 22 (Qty 2), 23, 24, 25 (Qty 2), 26 (Qty 2), 27 - 31

2шт.

22

155222A1

O-RING

3шт.

23

167362A1

O-RING

2шт.

24

167356A1

BACK-UP RING

2шт.

25

155221A1

O-RING

3шт.

26

154463A1

O-RING

3шт.

27

163323A1

O-RING

2шт.

28

164575A1

BACK-UP RING

2шт.

29

NSS

NOT SOLD SEPARAT

Bolt, Incl in 21

2шт.

30

NSS

NOT SOLD SEPARAT

Body, Incl in 21

2шт.

31

NSS

NOT SOLD SEPARAT

Body, Incl in 21

2шт.

32

LNC0134

VALVE, PRESSURE RELI

ASSY, Incl 22 (Qty 1), 25 (Qty 1), 26 (Qty 1), 33 - 37

1шт.

33

154462A1

O-RING

1шт.

34

153952A1

BACK-UP RING

1шт.

35

NSS

NOT SOLD SEPARAT

Body, Incl in 32

1шт.

36

NSS

NOT SOLD SEPARAT

Body, Incl in 32

1шт.

37

NSS

NOT SOLD SEPARAT

Bolt, Incl in 32

1шт.

38

LUC0079

ROD,THREADED

2шт.

39

TUC0006

SPECIAL NUT

4шт.

40

LUC0083

THREADED ROD

1шт.

41

168709A1

VALVE SECTION

ASSY, Incl 2 - 40

1шт.

Выбрано товаров: 42
