Запчасти Case CX500D LC (88.100.35[103]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, CONTROL VALVE (88) - ACCESSORIES

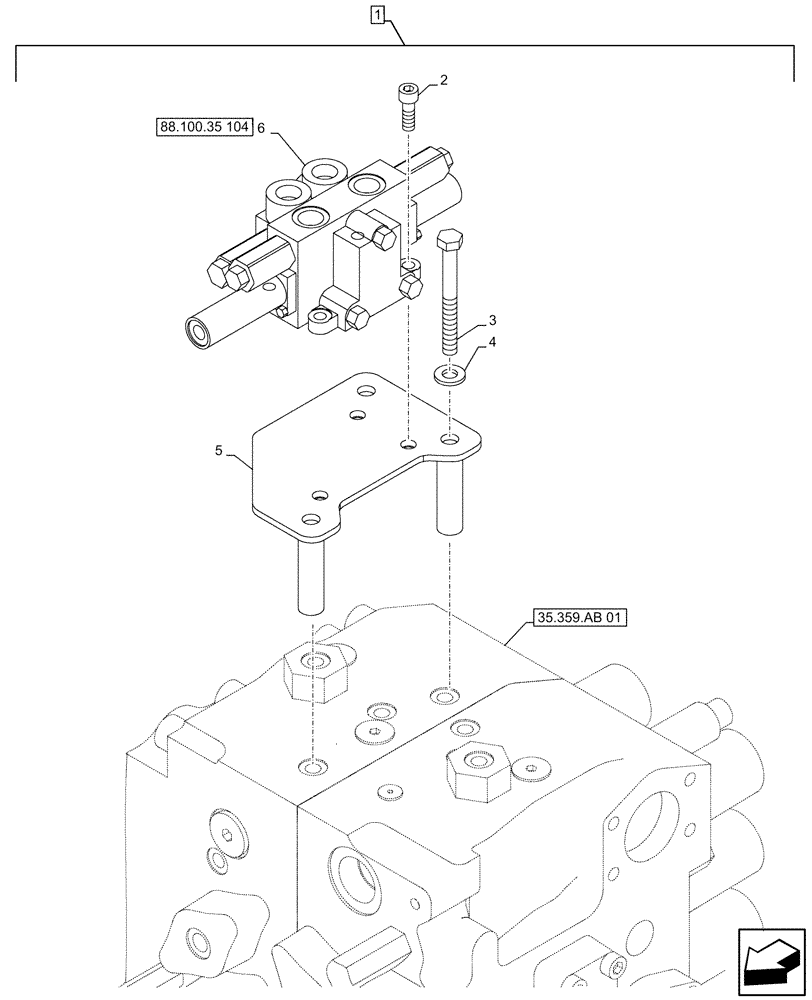

Схема запчастей Case CX500D LC - (88.100.35[103]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, CONTROL VALVE (88) - ACCESSORIES
1
35.359.ab 01
6
88.100.35 104
4
3
2
5

Артикул

Название

Примечание

Количество

1

KG0TP663-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

3шт.

3

827-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

3шт.

4

150811A1

WASHER

3шт.

5

KTJ16200

BRACKET

1шт.

6

168709A1

VALVE SECTION

ASSY

1шт.

Выбрано товаров: 7
