(88.100.35[101]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, DECAL, CONTROLS

Запчасти Case CX500D LC (88.100.35[101]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, DECAL, CONTROLS (88) - ACCESSORIES

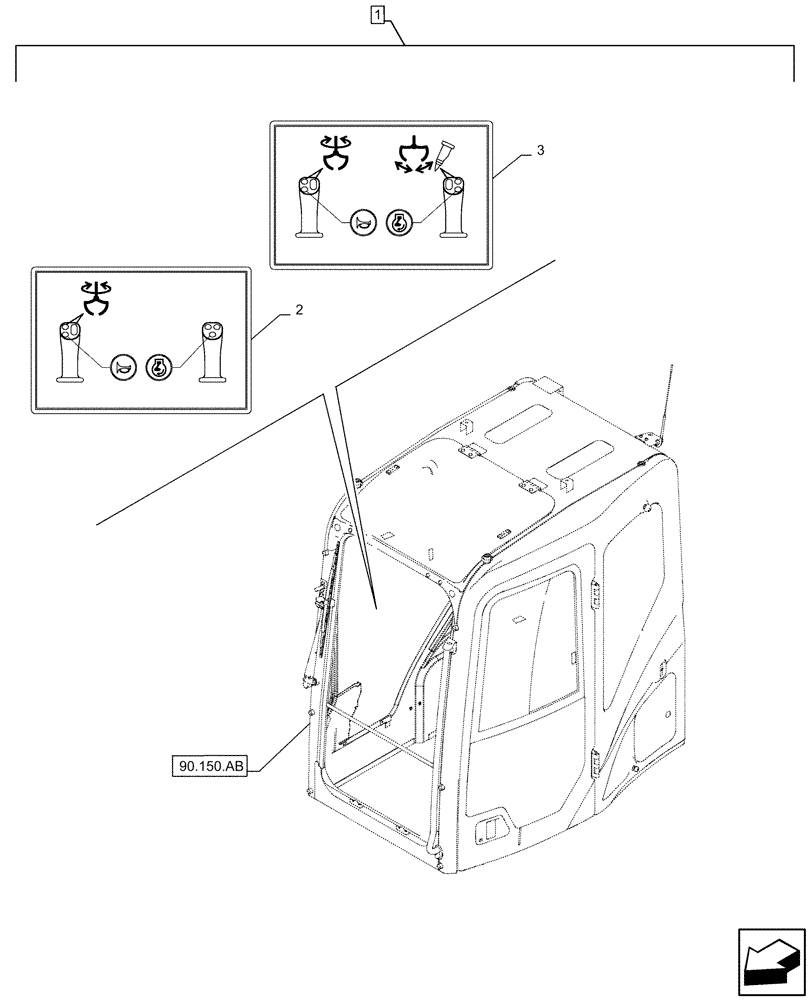

Схема запчастей Case CX500D LC - (88.100.35[101]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, DECAL, CONTROLS (88) - ACCESSORIES
90.150.ab
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP663-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2, 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHP27250

DECAL

1шт.

3

KHP27240

DECAL

1шт.

Выбрано товаров: 4
