Запчасти Case CX500D LC (88.100.35[100]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES

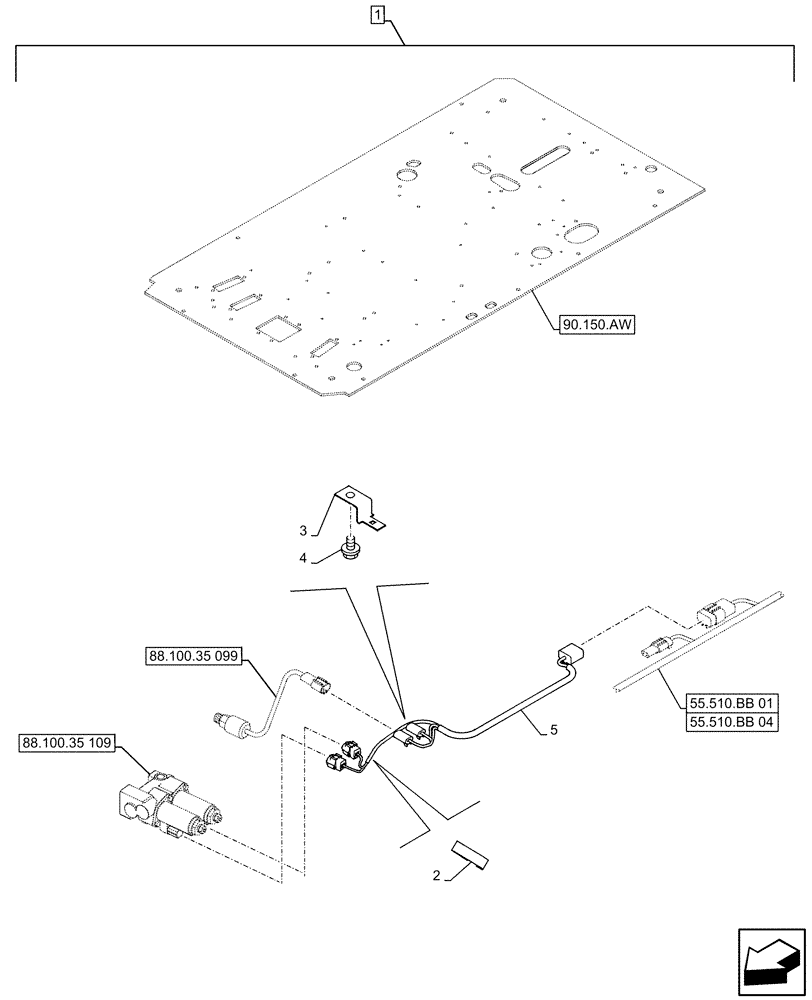

Схема запчастей Case CX500D LC - (88.100.35[100]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES
4
3
1
88.100.35 099
90.150.aw
88.100.35 109
55.510.bb 04
55.510.bb 01
2
5

Артикул

Название

Примечание

Количество

1

KG0TP663-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

150496A1

MOUNTING CLIP

250mm

9шт.

3

165405A1

CLIP

2шт.

4

159602A1

BOLT,Sems, Hex, M6 x 16mm

2шт.

5

KHR39520

WIRE HARNESS

1шт.

Выбрано товаров: 6
