(88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SPEED SENSOR

Запчасти Case CX500D LC (88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SPEED SENSOR (88) - ACCESSORIES

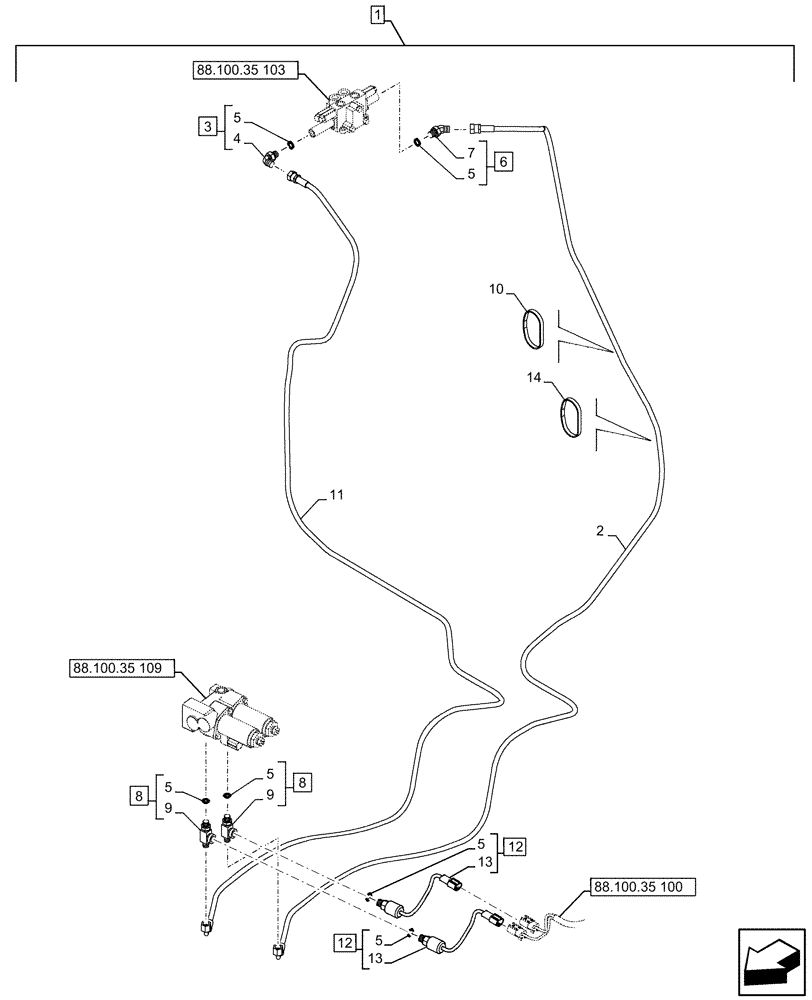

Схема запчастей Case CX500D LC - (88.100.35[099]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, SPEED SENSOR (88) - ACCESSORIES
8
5
6
1
11
5
2
88.100.35 109
9
9
13
7
4
12
5
88.100.35 100
88.100.35 103
8
5
12
10
5
14
3
13
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP663-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ33620

HYDRAULIC HOSE

4150mm, From Bucket Valve to Solenoid Valve

1шт.

3

KHJ28580

ELBOW

ASSY, Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

6

KHJ28630

ELBOW

ASSY, Incl 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 6

1шт.

8

167666A1

FITTING

ASSY, Incl 5 (Qty 2), 9

2шт.

9

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 8

2шт.

10

150496A1

MOUNTING CLIP

250mm

4шт.

11

KHJ18110

HOSE

6mm ID x 4000mm, From Bucket Valve to Solenoid Valve

1шт.

12

KHR21490

PRESSURE SWITCH

ASSY, 0.49MPa, Incl 5 (Qty 2), 13

2шт.

13

NSS

NOT SOLD SEPARAT

Pressure Switch, Incl in 12

2шт.

14

150498A1

MOUNTING CLIP

297mm

11шт.
