Запчасти Case CX500D LC (88.100.35[086]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE, SPEED SENSOR (88) - ACCESSORIES

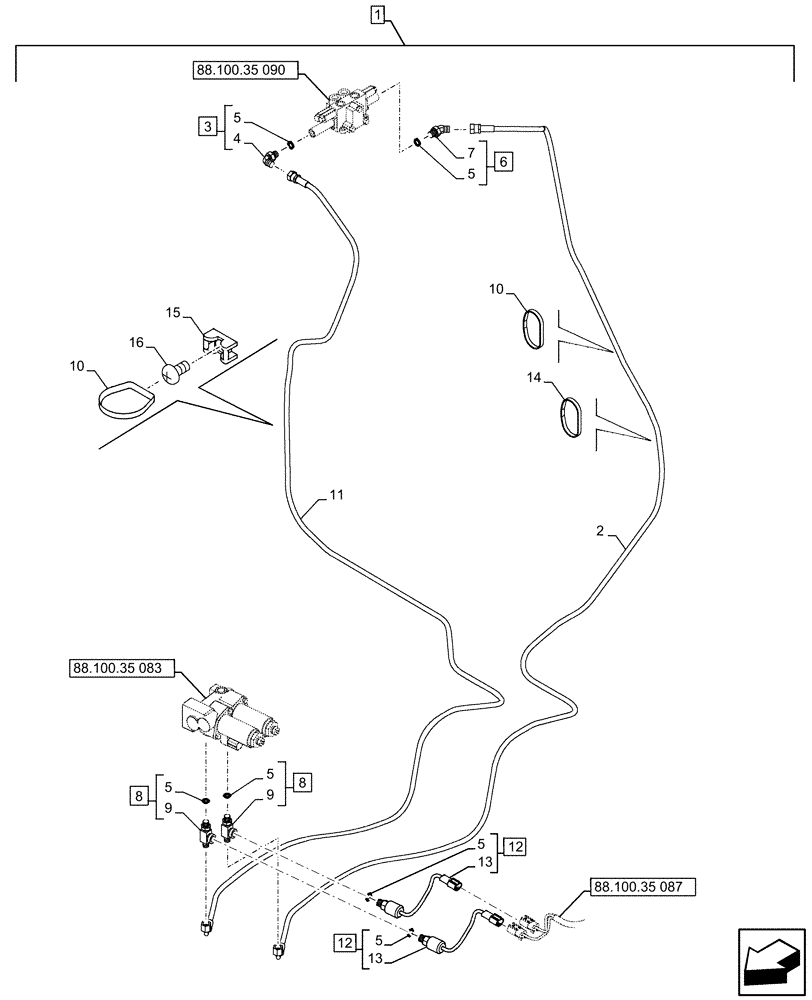

Схема запчастей Case CX500D LC - (88.100.35[086]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE, SPEED SENSOR (88) - ACCESSORIES
5
5
6
12
11
5
8
1
3
9
10
13
14
5
2
88.100.35 090
9
88.100.35 083
8
16
5
15
7
13
12
88.100.35 087
4
5
10

Артикул

Название

Примечание

Количество

1

KG0TP662-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ33620

HYDRAULIC HOSE

4150mm, From Bucket Valve to Solenoid Valve

1шт.

3

KHJ28580

ELBOW

ASSY, Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

6

KHJ28630

ELBOW

ASSY, Incl 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 6

1шт.

8

167666A1

FITTING

ASSY, Incl 5 (Qty 2), 9

2шт.

9

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 8

2шт.

10

150496A1

MOUNTING CLIP

250mm

5шт.

11

KHJ18110

HOSE

6mm ID x 4000mm, From Bucket Valve to Solenoid Valve

1шт.

12

KHR21490

PRESSURE SWITCH

ASSY, 0.49MPa, Incl 5 (Qty 2), 13

2шт.

13

NSS

NOT SOLD SEPARAT

Pressure Switch, Incl in 12

2шт.

14

150498A1

MOUNTING CLIP

297mm

11шт.

15

150860A1

COLLAR

2шт.

16

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

M6 x 8mm

2шт.

Выбрано товаров: 17
