Запчасти Case CX500D LC (88.100.35[085]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES

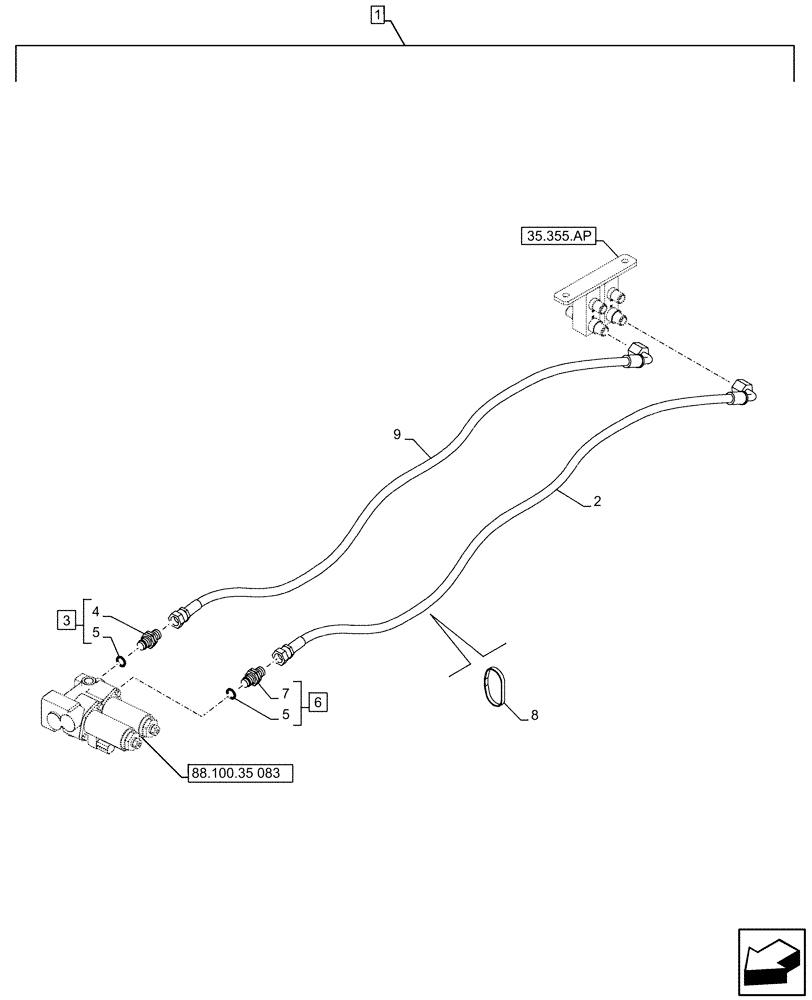

Схема запчастей Case CX500D LC - (88.100.35[085]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC LINE (88) - ACCESSORIES
2
5
5
6
4
8
7
3
9
1
88.100.35 083
35.355.ap

Артикул

Название

Примечание

Количество

1

KG0TP662-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2088

HOSE

6mm ID x 850mm, From Drain Blok Valve to Solenoid Valve

1шт.

3

161841A1

HYD CONNECTOR

ASSY, Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

150496A1

MOUNTING CLIP

250mm

1шт.

9

KHJ2089

HOSE,6.3 mm ID x 900.00 mm

6mm ID x 900mm, From Drain Blok Valve to Solenoid Valve

1шт.

Выбрано товаров: 10
