(88.100.35[080]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC PUMP, GEAR

Запчасти Case CX500D LC (88.100.35[080]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC PUMP, GEAR (88) - ACCESSORIES

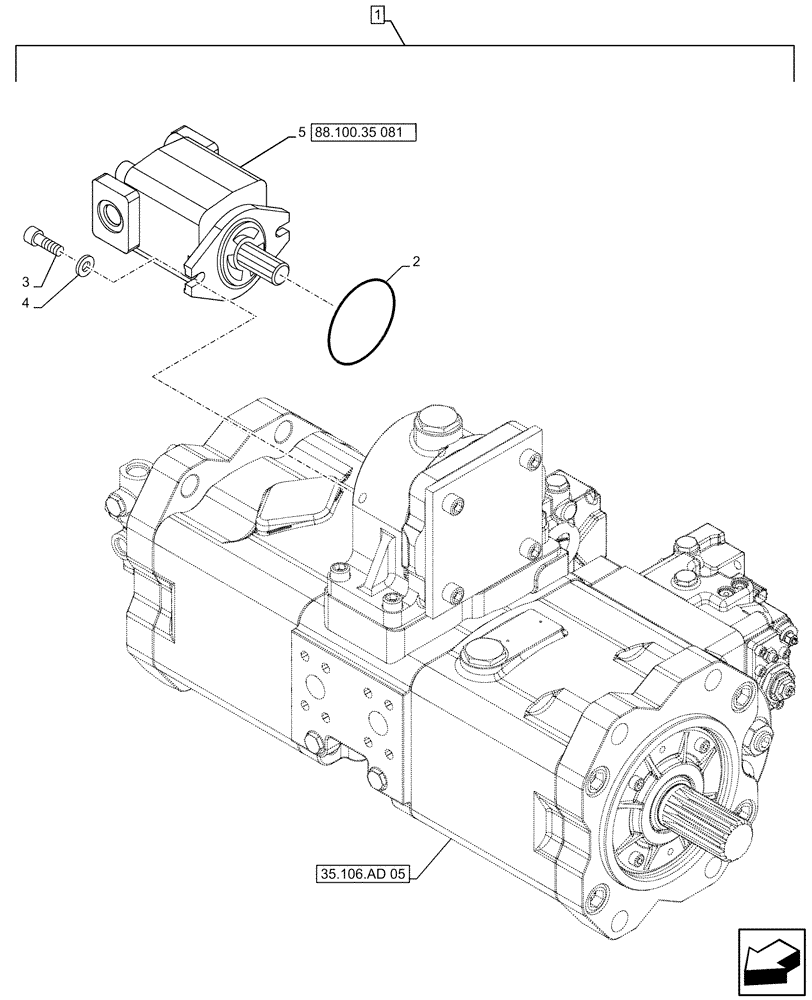

Схема запчастей Case CX500D LC - (88.100.35[080]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, HYDRAULIC PUMP, GEAR (88) - ACCESSORIES
5
3
4
88.100.35 081
2
35.106.ad 05
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP662-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

154697A1

O-RING

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

4

150409A1

WASHER

2шт.

5

KRJ34770

PUMP

Gear, ASSY

1шт.

Выбрано товаров: 6
