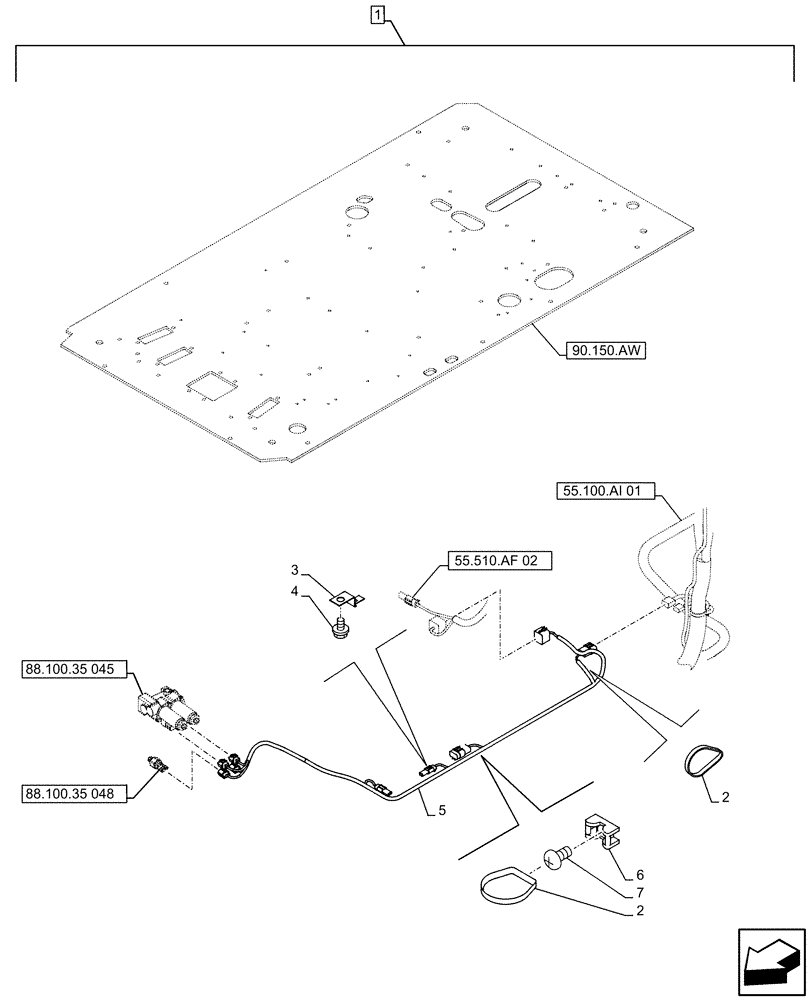

Запчасти Case CX500D LC (88.100.35[049]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES
![Схема запчастей Case CX500D LC - (88.100.35[049]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, OPTION, WIRE HARNESS (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5405076.png)
88.100.35 045
3
7
4
90.150.aw
55.510.af 02
1
2
88.100.35 048
55.100.ai 01
6
2
5
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KG0TP655-00
CONSTRUCTION DIA
Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 7
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
150496A1
MOUNTING CLIP
250mm
10шт.
3
165405A1
CLIP
3шт.
4
159602A1
BOLT,Sems, Hex, M6 x 16mm
3шт.
5
KHR39501
WIRE HARNESS
1шт.
6
150860A1
COLLAR
4шт.
7
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
4шт.
Выбрано товаров: 8
