Запчасти Case CX500D LC (88.100.35[046]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, COMPONENTS (88) - ACCESSORIES

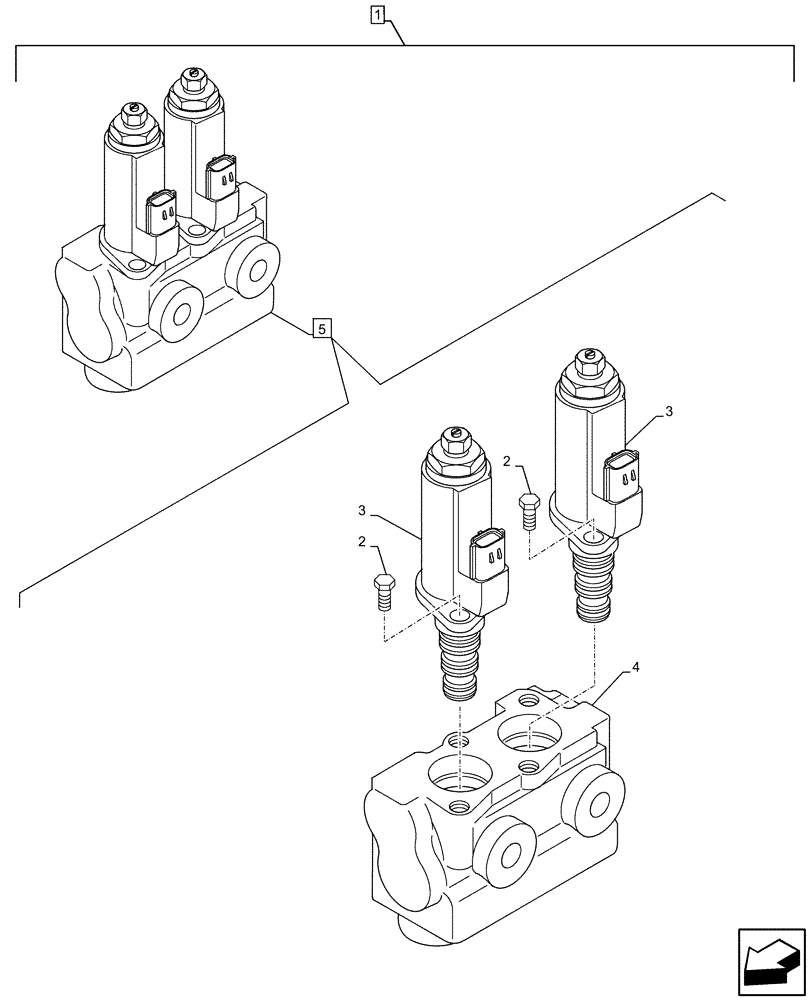

Схема запчастей Case CX500D LC - (88.100.35[046]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, COMPONENTS (88) - ACCESSORIES
2
1
3
2
3
5
4

Артикул

Название

Примечание

Количество

1

KG0TP655-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

102R005Y012R

BOLT

M5 x 12mm

4шт.

3

LJ017960

VALVE

2шт.

4

LW005920

BODY

1шт.

5

MFJ71500

VALVE SECTION

ASSY, Incl 2 - 4

1шт.

Выбрано товаров: 6
