Запчасти Case CX500D LC (88.100.35[043]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES

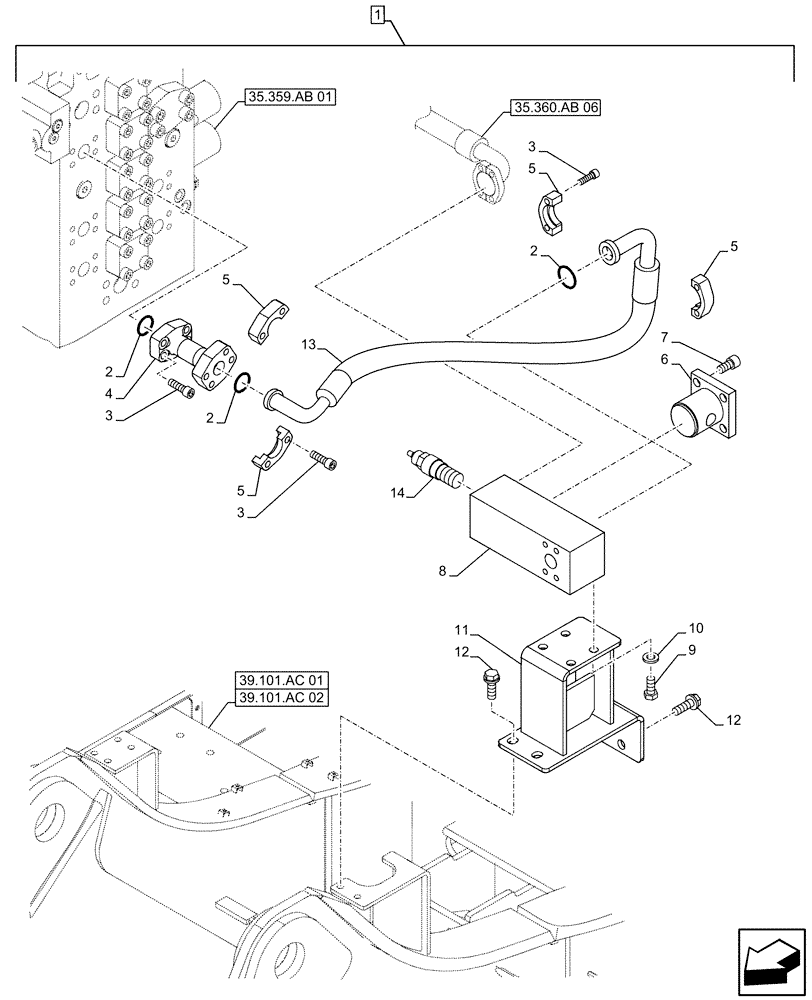

Схема запчастей Case CX500D LC - (88.100.35[043]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES
2
3
3
2
7
3
13
39.101.ac 02
5
14
10
39.101.ac 01
2
8
12
9
35.360.ab 06
35.359.ab 01
4
12
1
5
11
6
5
5

Артикул

Название

Примечание

Количество

1

KG0TP655-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Proportional, Incl 2 - 14

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

164450A1

O-RING

3шт.

3

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

12шт.

4

KTJ17110

PIPE

1шт.

5

150124A1

FLANGE

4шт.

6

KHJ17370

MANIFOLD VALVE

1шт.

7

862-16030

HEX SOC SCREW,M16 x 30mm, Cl 12.9

4шт.

8

KSJ2740

MANIFOLD

1шт.

9

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

10

157548A1

WASHER

M16

4шт.

11

KTJ16620

BRACKET

1шт.

12

165929A1

BOLT,Sems, M16

M16 X 50mm

4шт.

13

KTJ16900

HYDRAULIC HOSE

32mm ID x 980mm

1шт.

14

162656A1

VALVE

1шт.

Выбрано товаров: 15
