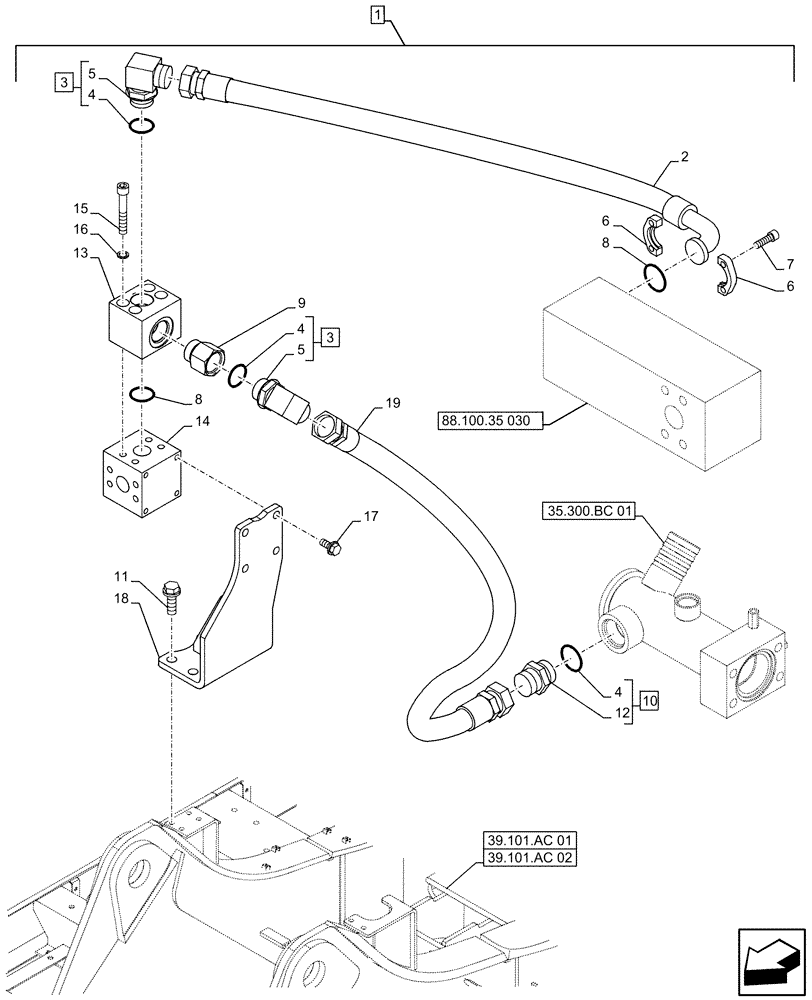

Запчасти Case CX500D LC (88.100.35[029]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES

1

KG0TP653-00

CONSTRUCTION DIA

Single Acting Circuit, Proportional, Incl 2 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTJ2223

HYDRAULIC HOSE,31.80 mm ID x 820.00 mm

32mm ID x 820mm

1шт.

3

157582A1

ELBOW,90 Degree, 1 1/4" O-Ring x 1 1/4"

ASSY, G1 1/4" x G1 1/4", Incl 4 (Qty 2), 5

2шт.

4

154559A1

O-RING

3шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 3

2шт.

6

157856A1

CLAMP BRACKET

2шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

8

164450A1

O-RING

2шт.

9

KHJ33440

ADAPTER

G1 1/4" x G1 1/4"

1шт.

10

159047A1

ADAPTER

ASSY, Incl 4 (Qty 1), 12

1шт.

11

165929A1

BOLT,Sems, M16

M16 x 30mm

4шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

13

162667A1

MANIFOLD

1шт.

14

163436A1

MANIFOLD

1шт.

15

862-14090

HEX SOC SCREW,M14 x 90mm, Cl 12.9

4шт.

16

184-014VR

SPRING WASHER

4шт.

17

166352A1

BOLT

M12 x 30mm

4шт.

18

KTJ16100

BRACKET

1шт.

19

KTJ16090

HYDRAULIC HOSE

32mm ID x 880mm

1шт.
