(88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX500D LC (88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

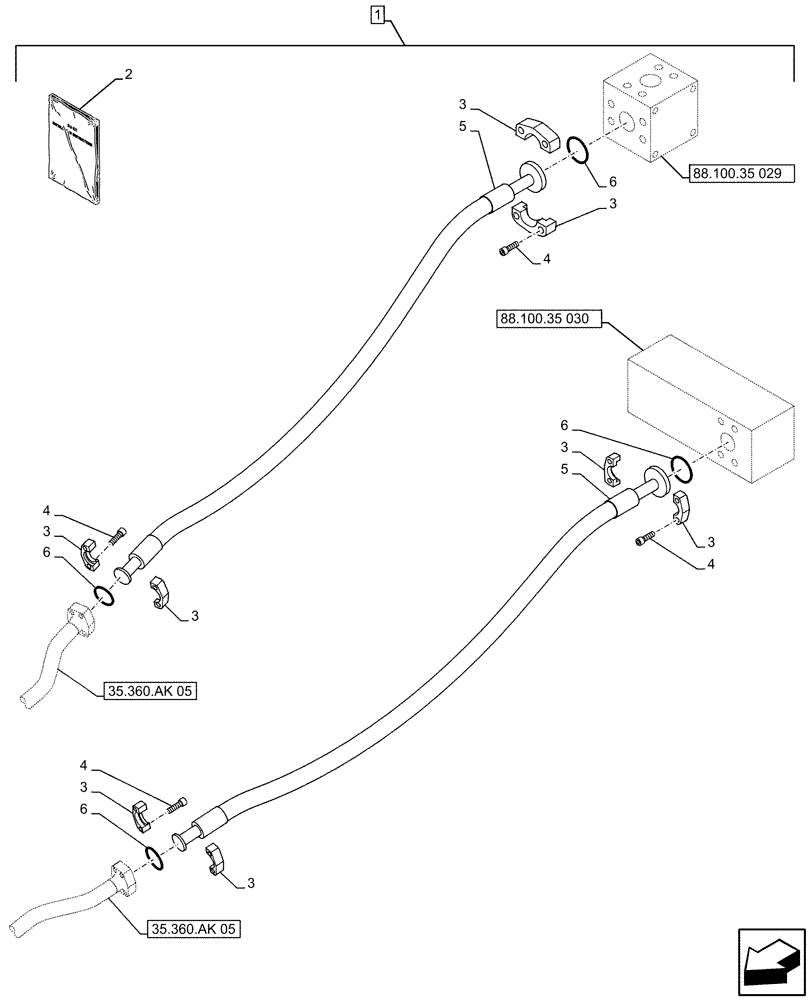

Схема запчастей Case CX500D LC - (88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
3
3
4
5
4
2
5
3
3
3
3
35.360.ak 05
6
4
88.100.35 029
1
35.360.ak 05
3
3
6
88.100.35 030
6
4
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0TP653-00

CONSTRUCTION DIA

Single Acting Circuit, Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47960355

INSTRUCTION

1шт.

3

150124A1

FLANGE

8шт.

4

108R014Y045R

BOLT,Hex Skt, M14 x 45mm, Cl 12.9

16шт.

5

KTJ12390

HYDRAULIC HOSE

32mm ID x 1850mm, To Stop Valve

2шт.

6

164450A1

O-RING

4шт.

Выбрано товаров: 7
