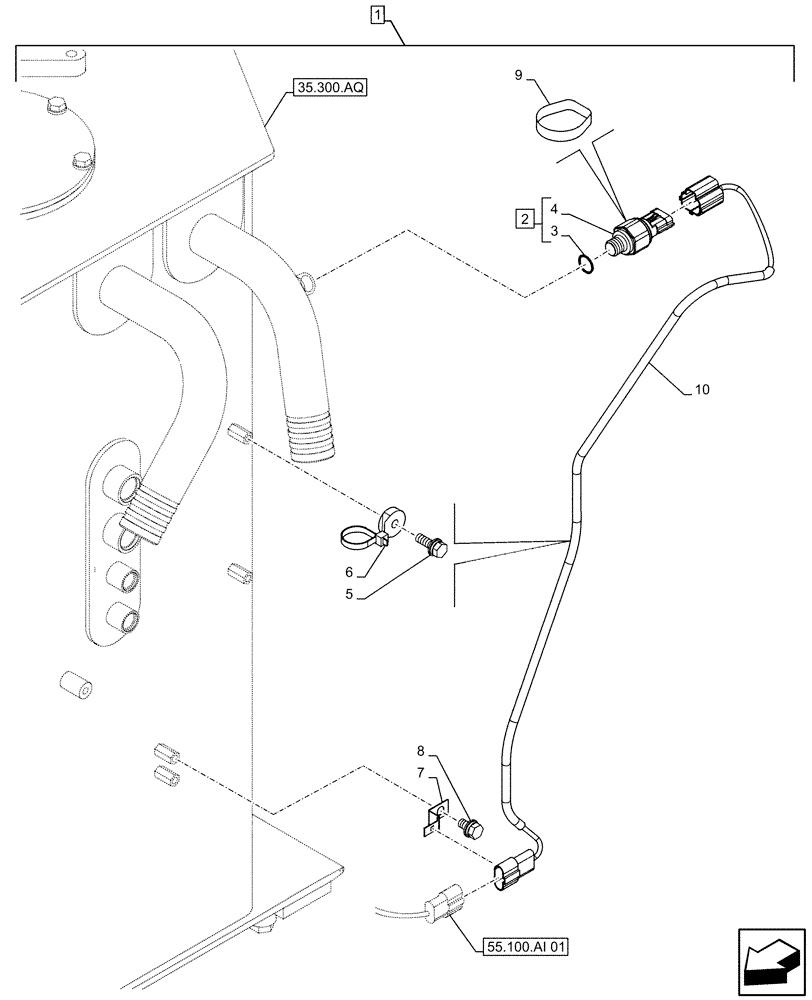

Запчасти Case CX500D LC (88.100.35[024]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, PRESSURE SWITCH (88) - ACCESSORIES

1

KG0TP650-00

CONSTRUCTION DIA

Single Acting Circuit, Pedal, Incl 2 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR32870

SENSOR

ASSY, Pressure, 1MPa, Incl 3, 4

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

NSS

NOT SOLD SEPARAT

Pressure Sensor, Incl in 2

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

6

KHR2584

CLAMP

1шт.

7

158962A1

CLIP

1шт.

8

167518A1

BOLT

M8 x 16mm

1шт.

9

150496A1

MOUNTING CLIP

250mm

1шт.

10

KHR41550

WIRE HARNESS

Sump Tank to Main Harness

1шт.
