Запчасти Case CX500D LC (88.100.35[023]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, WIRE HARNESS (88) - ACCESSORIES

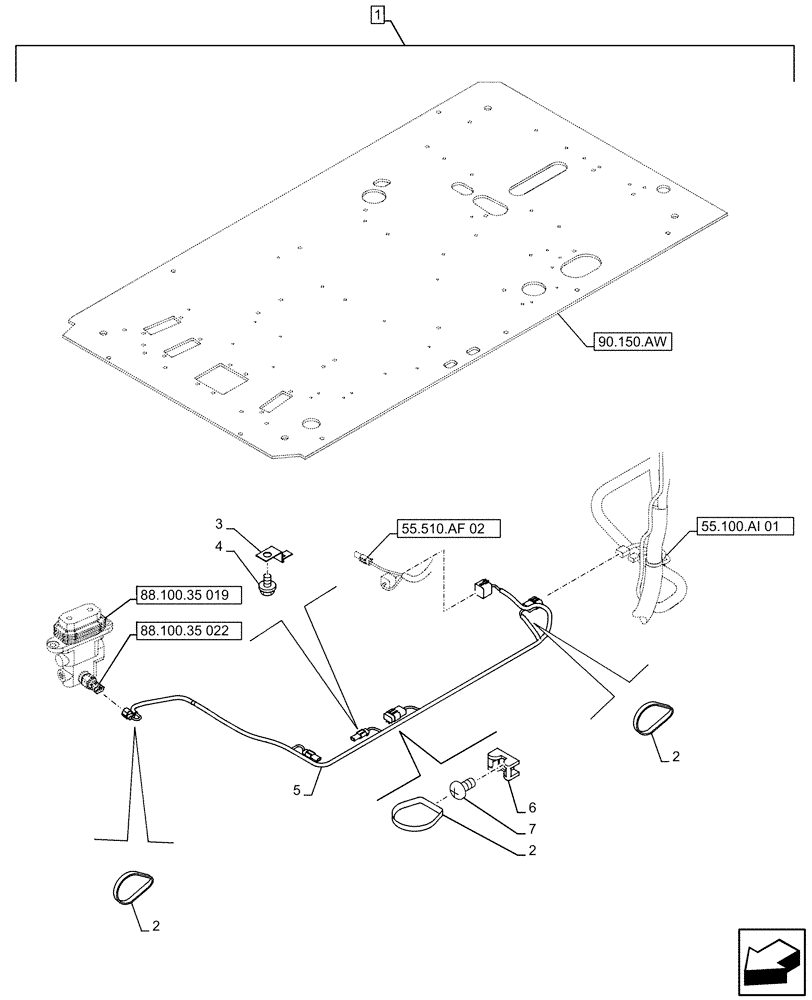

![Схема запчастей Case CX500D LC - (88.100.35[023]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, WIRE HARNESS (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/5404935.png)
5
1
55.510.af 02
3
88.100.35 019
2
55.100.ai 01
6
2
90.150.aw
7
88.100.35 022
2
4
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KG0TP650-00
CONSTRUCTION DIA
Single Acting Circuit, Pedal, Incl 2 - 7
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
2
150496A1
MOUNTING CLIP
250mm
10шт.
3
165405A1
CLIP
3шт.
4
159602A1
BOLT,Sems, Hex, M6 x 16mm
3шт.
5
KHR39480
WIRE HARNESS
1шт.
6
150486A1
CLIP
4шт.
7
840-168
SCREW,Pan, M6 x 1 x 8mm, Cl 4.8
4шт.
Выбрано товаров: 8
