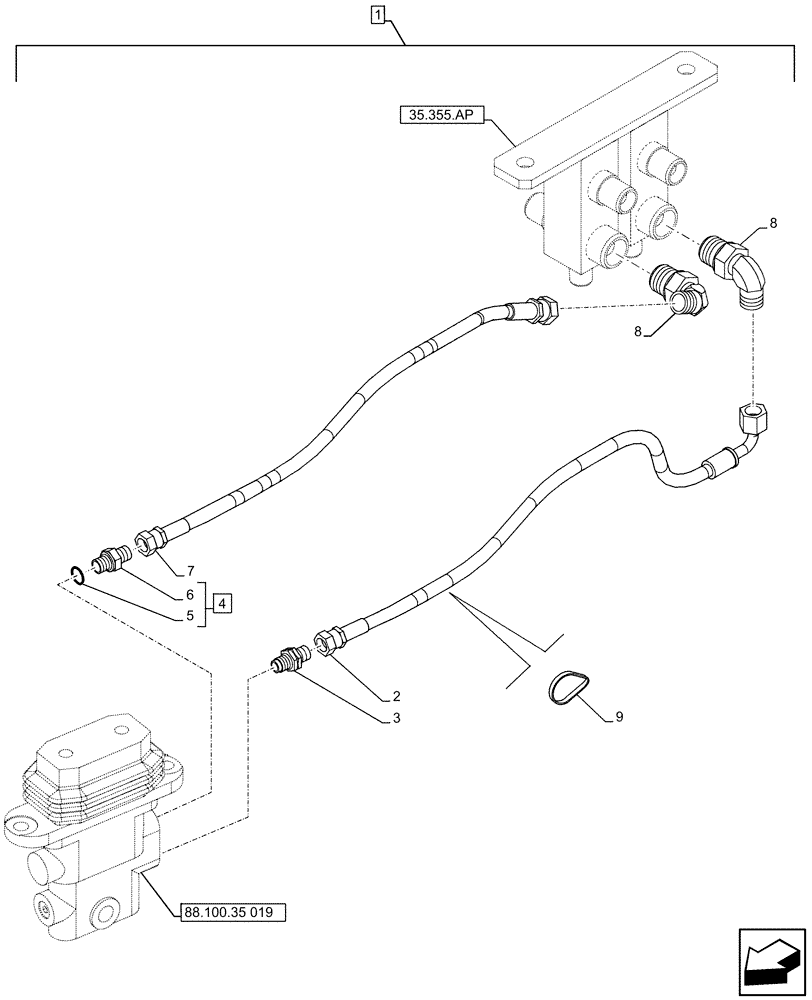

Запчасти Case CX500D LC (88.100.35[021]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, FOOT CONTROL VALVE, LINE (88) - ACCESSORIES

1

KG0TP650-00

CONSTRUCTION DIA

Single Acting Circuit, Pedal, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2093

HOSE

6mm ID x 1150mm

1шт.

3

161841A1

HYD CONNECTOR

G1/4" x G1/4"

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 5, 6

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 4

1шт.

7

KHJ2051

HOSE

6mm ID x 1050mm

1шт.

8

KHJ28580

ELBOW

2шт.

9

150496A1

MOUNTING CLIP

250mm

4шт.
