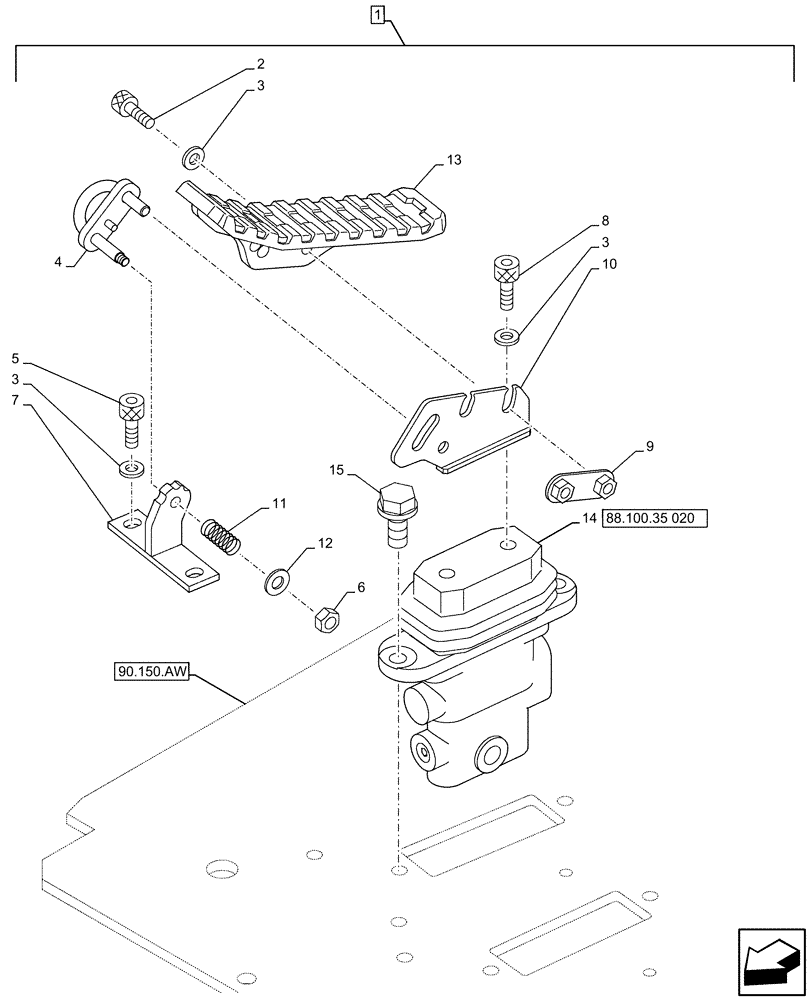

Запчасти Case CX500D LC (88.100.35[019]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, PEDAL, FOOT CONTROL VALVE (88) - ACCESSORIES

1

KG0TP650-00

CONSTRUCTION DIA

Single Acting Circuit, Pedal, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ24800

BOLT

M10 x 30mm

2шт.

3

150604A1

WASHER

6шт.

4

KHJ10701

ARRESTER

1шт.

5

108R010Y016R

BOLT

M10 x 6mm

2шт.

6

157740A1

NUT

1шт.

7

KHJ10711

SUPPORT

1шт.

8

165404A1

BOLT,Hex Skt, M10 x 20mm

2шт.

9

KHJ24780

BRACKET, SUPPORTING

1шт.

10

KHJ24740B1

SUPPORT

1шт.

11

KHJ10721

SPRING

1шт.

12

159500A1

WASHER

1шт.

13

KHJ13850

PEDAL

1шт.

14

KHJ24720

CONTROL BLOCK

ASSY

1шт.

15

166052A1

BOLT

M10 x 25mm

2шт.
