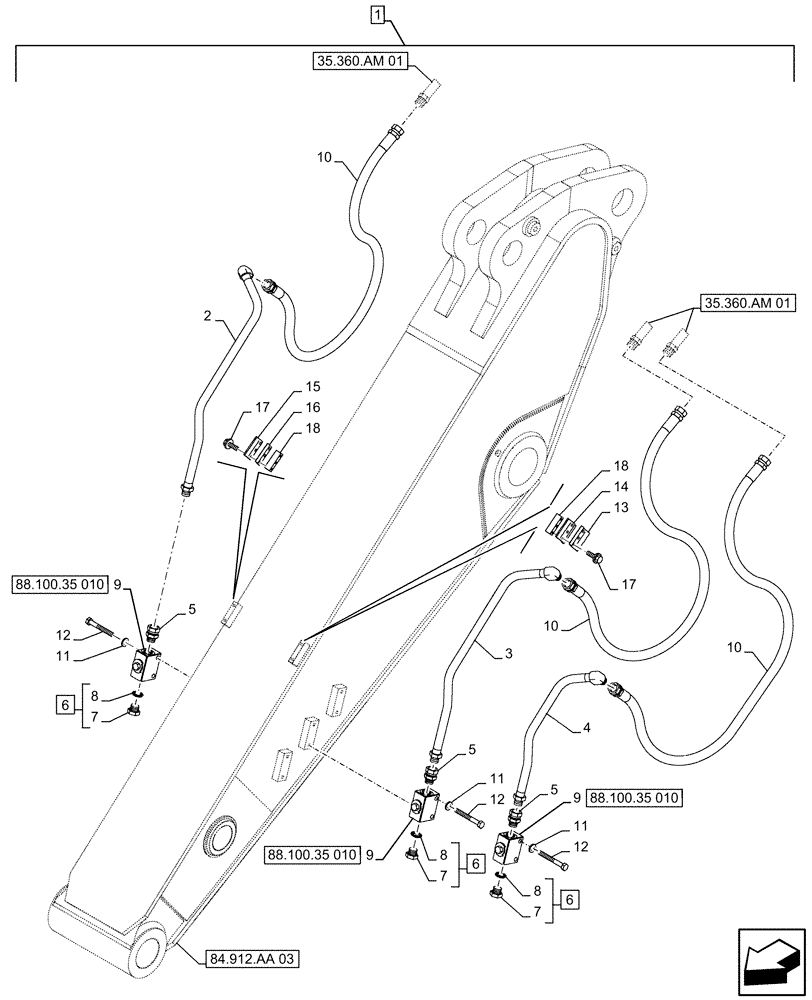

Запчасти Case CX500D LC (88.100.35[009]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM (L=2.53M) (88) - ACCESSORIES

1

KG0TP683-00

CONSTRUCTION DIA

Second Option Line, Incl 2 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KTV20390

PIPE

1шт.

3

KTV20380

PIPE

1шт.

4

KTV20400

PIPE

1шт.

5

167248A1

FITTING

3шт.

6

152924A1

PLUG

ASSY, Incl 7, 8

3шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

3шт.

8

154503A1

O-RING

3шт.

9

KHV10710

VALVE

ASSY

3шт.

10

KTV13190

HYDRAULIC HOSE,19.00 mm ID x 170.00 mm

to Bucket Valve

3шт.

11

150811A1

WASHER

6шт.

12

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

6шт.

13

KHV10450

COLLAR CLAMP

1шт.

14

KHV11410

PIPE CLAMP

1шт.

15

KHV10460

COLLAR CLAMP

1шт.

16

KHV11420

PIPE CLAMP

1шт.

17

166352A1

BOLT

6шт.

18

KHV10620

BAR

22mm x 54mm x 120mm

2шт.
