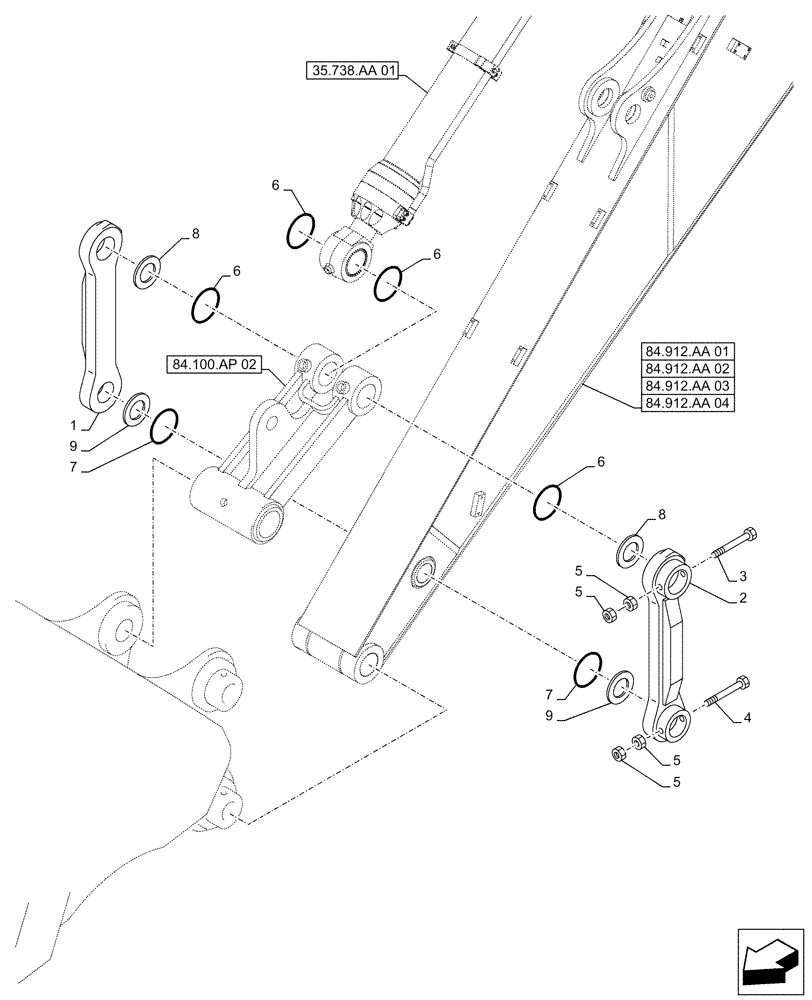

Запчасти Case CX500D LC (84.100.AC[02]) - VAR - 481064 - LINK CONROD, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS

1

KTV1309

LINKAGE YOKE

1шт.

2

KTV1310

LINKAGE YOKE

1шт.

3

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

1шт.

4

514-1404

BOLT,Hex, M24 x 2 x 190mm, Cl 10.9

1шт.

5

829-13424

NUT,M24 x 2, Cl 10

4шт.

6

153690A1

O-RING

4шт.

7

160403A1

O-RING,154mm ID x 8mm Width

2шт.

8

151443A1

SHIM,111mm ID x 190mm OD x 1.2mm Thk

2шт.

9

KTP0427

SHIM

2шт.
