(55.100.DO[02]) - FUSE, WIRE HARNESS

Запчасти Case CX500D LC (55.100.DO[02]) - FUSE, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

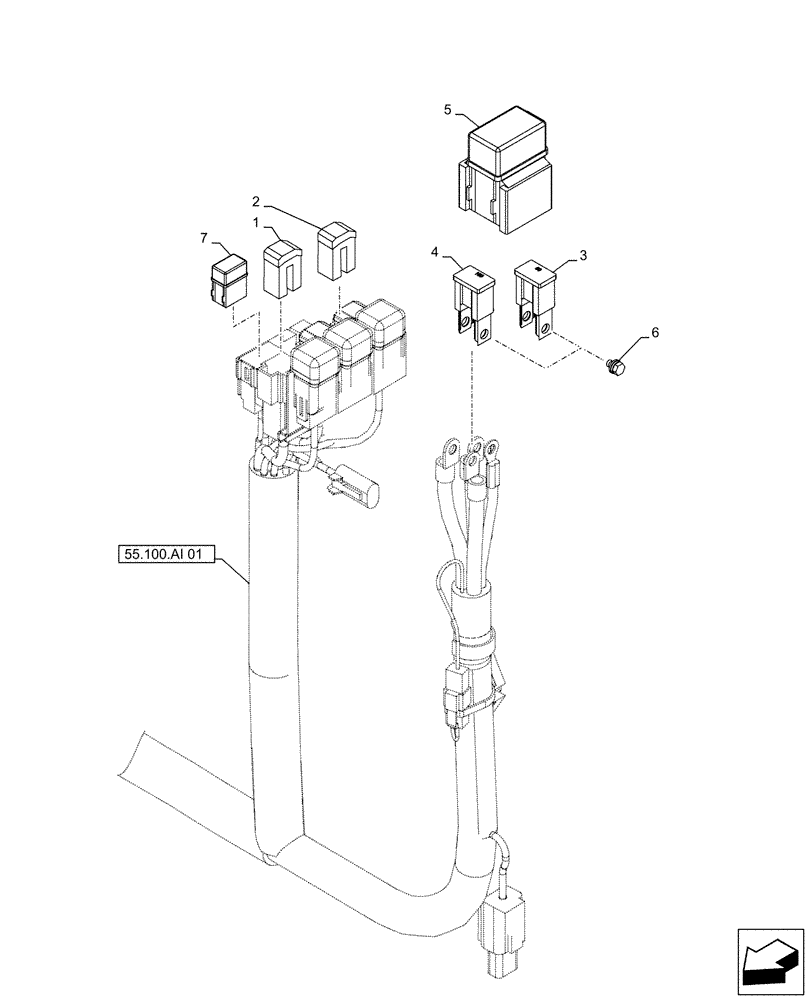

Схема запчастей Case CX500D LC - (55.100.DO[02]) - FUSE, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.100.ai 01
1
5
2
6
4
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR3850

FUSE

Rated current, A3, 50 A

1шт.

Part is Included in Wire Harness Assembly PN KTR13070

1шт.

2

KHR12950

FUSE

Rated current, A3, 60 A

2шт.

Part is Included in Wire Harness Assembly PN KTR13070

1шт.

3

KHR39840

FUSE

B1, 60A

1шт.

4

KHR39850

FUSE

B1, 100A

1шт.

5

KHR42470

FUSE HOLDER

1шт.

6

164796A1

BOLT,High Strength, Hex, M6 x 10mm, W/ LW

4шт.

7

KHR3802

RELAY

Relay condenser 24V

1шт.
