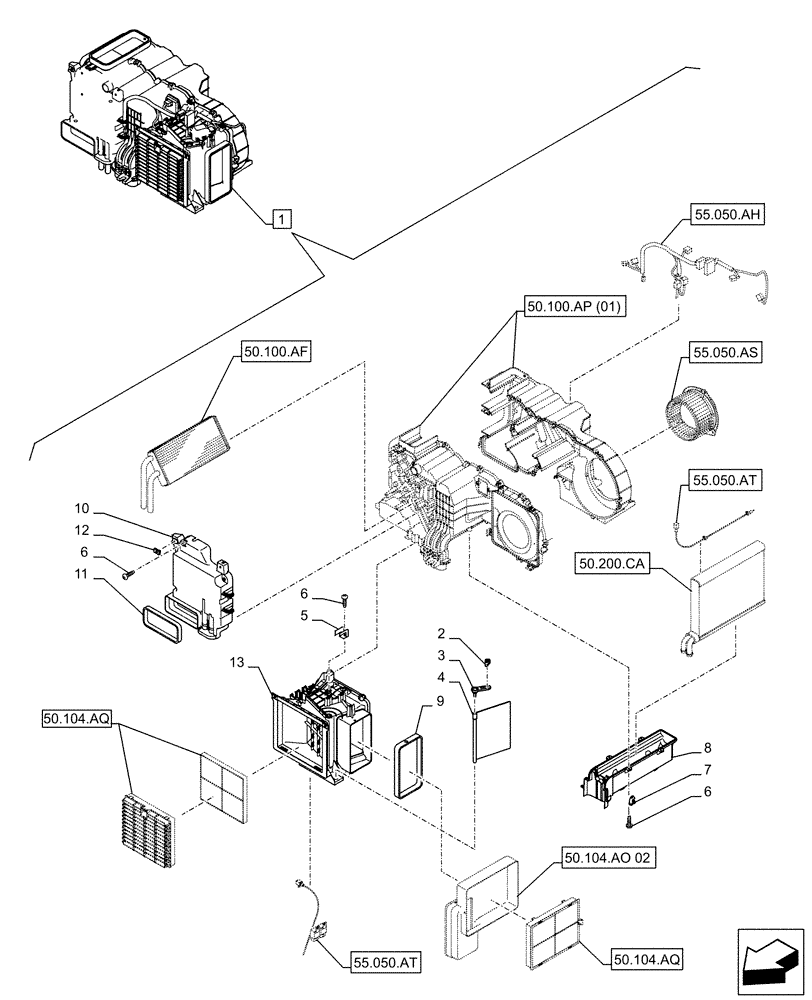

Запчасти Case CX500D LC (50.100.AP[02]) - AIR CONDITIONING, W/ HEATER, COMPONENTS (50) - CAB CLIMATE CONTROL
![Схема запчастей Case CX500D LC - (50.100.AP[02]) - AIR CONDITIONING, W/ HEATER, COMPONENTS (50) - CAB CLIMATE CONTROL](https://partsell.ru/storage/images/casece/5384383.png)
50.100.af
6
13
5
4
1
11
6
10
7
9
6
2
3
12
8
50.104.ao 02
50.104.aq
50.104.aq
55.050.ah
50.100.ap (01)
55.050.as
55.050.at
55.050.at
50.200.ca
№
Артикул
Название
Примечание
Количество
1
KHR27160
ECU
ASSY, Incl 2 - 13
1шт.
See also Figure 50.100.AP (01), 50.100.AF, 50.104.AQ, 50.200.CA, 55.050.AH, 55.050.AR, 55.050.AS, 55.050.AT
1шт.
2
KHR27460
LEVER
1шт.
3
KHR27510
LEVER
1шт.
4
KHR27480
DIFFUSER
1шт.
5
KHR27500
BRACKET, SUPPORTING
1шт.
6
KHR27520
SCREW
9шт.
7
KHR27890
CLIP
1шт.
8
KHR27880
DRAIN
1шт.
9
KHR27560
AERATOR
1шт.
10
KHR27570
COVER
1шт.
11
KHR27580
AERATOR
1шт.
12
KHR27590
NUT
1шт.
13
KHR27450
AIR DUCT
1шт.
Выбрано товаров: 14
